Product Details
Place of Origin: China
Brand Name: CHANGLIN
Certification: Provided
Model Number: ZL18H
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 20000-30000USD
Packaging Details: Nude
Delivery Time: 7-14 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 set/momth
Model: |
ZL18H |
Rated Load(kg): |
2000 |
Rated Bucket Capacity(m³): |
1 |
Dump Reach: |
750 |
Max.drawing Force(kN): |
58 |
Diesel Engine: |
YUNNEI YN33GBZ |
Rated Output(kw): |
65 |
Transmission: |
/ |
Gear Positions: |
2 Forward 2 Reverse |
Length*Width*Height(mm): |
5800×1860×2730 |
Operation Weight(kg): |
5000 |
Wheel Base(mm): |
1560 |
Model: |
ZL18H |
Rated Load(kg): |
2000 |
Rated Bucket Capacity(m³): |
1 |
Dump Reach: |
750 |
Max.drawing Force(kN): |
58 |
Diesel Engine: |
YUNNEI YN33GBZ |
Rated Output(kw): |
65 |
Transmission: |
/ |
Gear Positions: |
2 Forward 2 Reverse |
Length*Width*Height(mm): |
5800×1860×2730 |
Operation Weight(kg): |
5000 |
Wheel Base(mm): |
1560 |

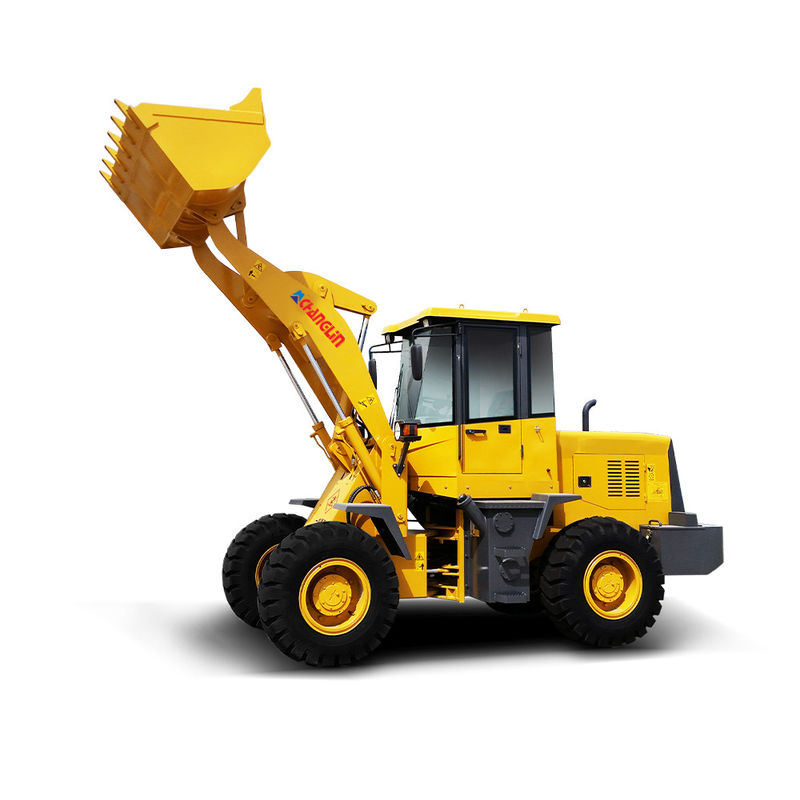

ZL18H WHEEL LOADER
FEATURES
1. The wheel loader is equipped with the domestic well-known YUNNEI engine, which gives the construction machine better performance with strong power and low failure rate. Thanks to the hydraulic torque converter, optimal body weight and corresponding speed ratio, the wheel loader has both large traction and strong breakout force. As such, it has ideal ground speed with less fuel consumption.
2.The wheel loader has a double-axle drive, wheel-side deceleration mechanism, swing-type rear axle and large pattern tires. That’s why it has good off-road performance and compact transmission structure.
3. Designed with articulated frame, this wheel loader is capable of loading and unloading materials with ease. Besides, the design of small turning radius enables it flexible and maneuverable.
4.The wheel loader is designed with single arm, high pivot point, short tie rod, new Z-bar loader arm and double-pump confluence, to ensure a strong digging ability. The loader boom has been improved on its strength to provide sufficient force for the grasping, loading and unloading of various materials. Various types of attachments are strong enough to resist high impact loads.
5.The wheel loader features a power split transmission having a single-stage single-phase three-element torque converter and a parallel shaft gearbox, offering high transmission efficiency as well as convenience for maintenance. The two-speed hydraulic gearshift system is adopted for smooth gear shifting without the need for cutting off the power. Since the hydraulic transmission can adapt to the change of external resistance within a certain range, there is no need to shift gears frequently, so that high efficiency can be achieved.
