Rated load: |
7500KG |
Rated bucket capacity: |
4.2m3 |
Dump Clearance: |
3220mm |
Dump Reach: |
1275mm |
Max. drawing force: |
222KN |
Diesel engine: |
Cummins QSM11 |
Rated output: |
216KW |
Transmission: |
ZF |
Gear positions: |
4 Forward, 3 Reverse |
Length×Width×Height: |
8696*3099*3710mm |
Operating weight: |
23500KG |
Wheel base: |
3400mm |
Tread: |
2350mm |
Max. Breakout Force: |
218KN |
Total Exhaust Of Cylinder: |
10.8L |
System Pressure: |
16MPa |
Rated load: |
7500KG |
Rated bucket capacity: |
4.2m3 |
Dump Clearance: |
3220mm |
Dump Reach: |
1275mm |
Max. drawing force: |
222KN |
Diesel engine: |
Cummins QSM11 |
Rated output: |
216KW |
Transmission: |
ZF |
Gear positions: |
4 Forward, 3 Reverse |
Length×Width×Height: |
8696*3099*3710mm |
Operating weight: |
23500KG |
Wheel base: |
3400mm |
Tread: |
2350mm |
Max. Breakout Force: |
218KN |
Total Exhaust Of Cylinder: |
10.8L |
System Pressure: |
16MPa |

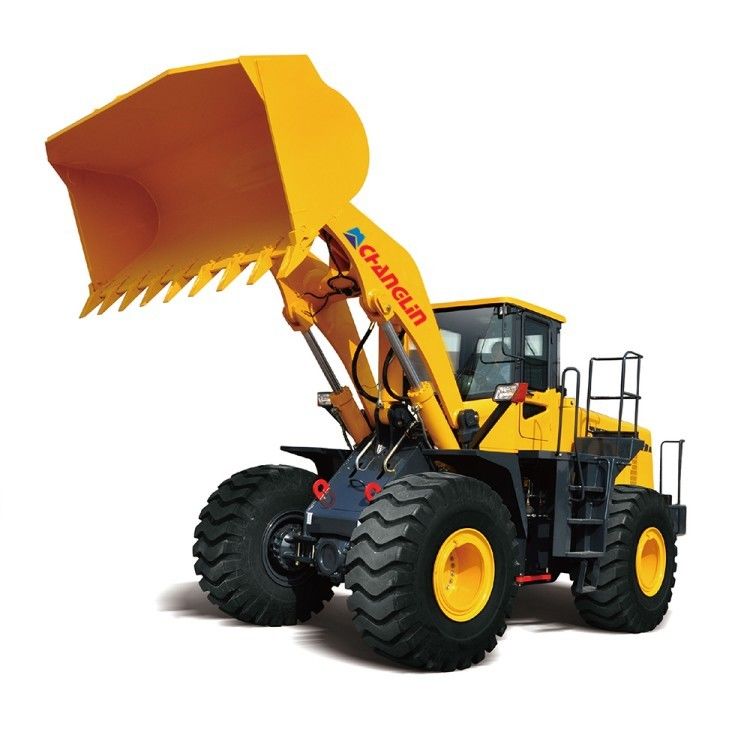

WHEEL LOADER ZL80H
ZL80H wheel loader is of advanced technology, comfortable operation, fuel efficiency and low emission. Thanks to ZF gearbox, ZF wet brake axle and high-quality hydraulic components from world's renowned brands, the efficient use of every part and reasonable power matching can be effectively achieved.The wheel loader features powerful penetration and breakout forces to provide superior operation performance under all kinds of working conditions.
|
Length(with bucket on ground) |
8696mm |
|
Width(to outside of wheels) |
3099mm |
|
Bucket width |
3250mm |
|
Height(To the top of the cab) |
3710mm |
|
Wheel base |
3400mm |
|
Tread |
2350mm |
|
Min. ground clearance |
495.5mm |
|
Rated load |
7500KG |
|
Operating weight |
23500KG |
|
Rated bucket capacity |
4.2M3 |
|
Max. breakout force |
218 KN |
|
Max. Drawing force |
222 KN |
|
Max. dump clearance |
3220mm |
|
Dump reach |
1275mm |
|
Engine Model |
Original Cummins QSM11-C290 |
FEATURES
1.Axle The well-known ZF wet brake axle, together with multi-disc limited slip differentials , delivers enhanced traction under various kinds of working conditions.
2.Brake valve Dual brake valve, dual-circuit hydraulic brake system and central lubrication system are included.
3.Bucket leveling The automatic bucket leveling ability helps maintain high work efficiency.
4.Cylinder The combined seal cylinder used in this wheel loader ensures desired sealing effect and reliable performance.
