Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: YZ8
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd13500/unit-usd19000/unit
Packaging Details: by container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 units per year
Operating Weight （kg）: |
8000 |
Vibratory Drum Diameter （mm）: |
1200 |
Compaction Width （mm）: |
1650 |
Static Line Pressure （N/cm）: |
245 |
Min. Ground Clearance （mm）: |
300 |
Wheel Base （mm）: |
2650 |
Min. Turning Radius （mm）: |
6000 |
Gradeability: |
25% |
Vibratory Amplitude（mm）: |
0.5 |
Vibratory Frequency （Hz）: |
48 |
Centrifugal Force （kN）: |
85 |
Tyre Model: |
12.00-20-16PR |
Engine Model: |
A498BG |
Rated Power: |
42kW@2200rpm |
Dimension (mm): |
5130×1830×2570 |
Operating Weight （kg）: |
8000 |
Vibratory Drum Diameter （mm）: |
1200 |
Compaction Width （mm）: |
1650 |
Static Line Pressure （N/cm）: |
245 |
Min. Ground Clearance （mm）: |
300 |
Wheel Base （mm）: |
2650 |
Min. Turning Radius （mm）: |
6000 |
Gradeability: |
25% |
Vibratory Amplitude（mm）: |
0.5 |
Vibratory Frequency （Hz）: |
48 |
Centrifugal Force （kN）: |
85 |
Tyre Model: |
12.00-20-16PR |
Engine Model: |
A498BG |
Rated Power: |
42kW@2200rpm |
Dimension (mm): |
5130×1830×2570 |

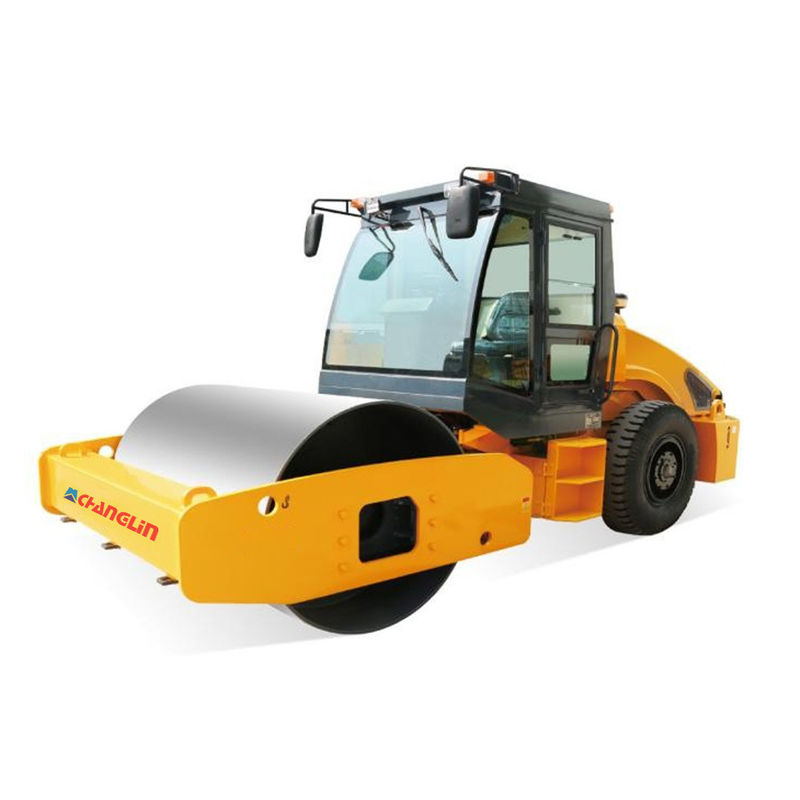

Suitable for compaction of large-scale engineering foundations such as high-grade roads, dams, railways, airports, etc. It can crush non-stick materials such as sand, gravel, gravel, rock fill and semi-stick materials.
Main Features:
·Equipped with 4-cylinder supercharged Xinchai power, with large power reserve, high efficiency, energy saving and environmental protection, and the emission reaches the China stage II;
·Mechanical drive, Forward 5 Reverse 1 speeds;
·Hydraulic vibration, electric control, vibration, large centrifugal force, good compaction performance;
·Hydraulic steering, articulated frame, light and flexible steering, light and flexible operation
·Equipped with a special gearbox for the roller, which has large transmission torque and light shifting;
·Gas-assisted hydraulic caliper disc driving brake, mechanical parking drum brake, safe and reliable
·The rear hood can be turned up at a large angle for easy maintenance
·Hydraulic components use well-known brands and reliable performance
