Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: ZL60H
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD14500/unit
Packaging Details: Nude
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 unit/momth
Rated load: |
6000KG |
Rated bucket capacity: |
3.7m3 |
Dump Clearance: |
3325mm |
Dump Reach: |
1433mm |
Max. drawing force: |
180KN |
Diesel engine: |
Shangchai SC11CB240.1G2B1 |
Rated output: |
174.5KW |
Transmission: |
ZF 4WG200 |
Gear positions: |
4 Forward, 3 Reverse |
Length×Width×Height: |
8714*2900*3550mm |
Operating weight: |
19500KG |
Wheel base: |
3300mm |
Size Of Tire: |
23.5-25-20PR |
Fuel: |
350L |
Oil For Hydraulic System: |
245L |
System Pressure: |
16MPa |
Rated load: |
6000KG |
Rated bucket capacity: |
3.7m3 |
Dump Clearance: |
3325mm |
Dump Reach: |
1433mm |
Max. drawing force: |
180KN |
Diesel engine: |
Shangchai SC11CB240.1G2B1 |
Rated output: |
174.5KW |
Transmission: |
ZF 4WG200 |
Gear positions: |
4 Forward, 3 Reverse |
Length×Width×Height: |
8714*2900*3550mm |
Operating weight: |
19500KG |
Wheel base: |
3300mm |
Size Of Tire: |
23.5-25-20PR |
Fuel: |
350L |
Oil For Hydraulic System: |
245L |
System Pressure: |
16MPa |

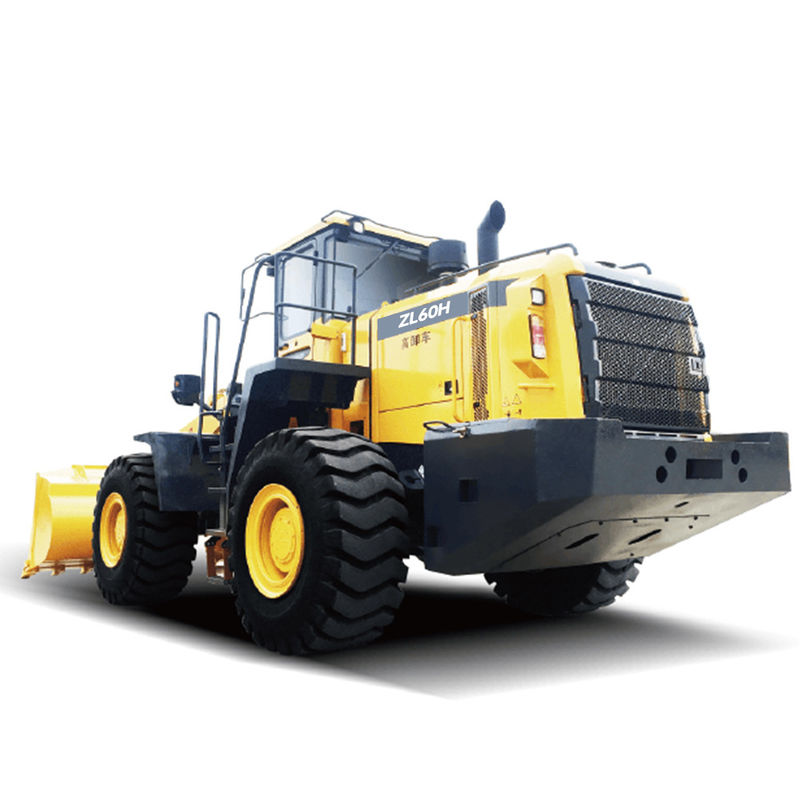

WHEEL LOADER ZL60H
ZL60H wheel loaders are CHANGLIN's fourth generation of construction equipment designed with large vehicle body and long wheelbase to deal with heavy loads in various working conditions. The ZF gearbox adopted in the wheel loader enables better power matching and more comfortable control. The ZL60H wheel loader is designed with a range of new features, functions and state-of-the-art technological improvements, all of which contribute to enhanced work efficiency, superior performance, increased productivity and higher operation safety.
|
Length(with bucket on ground) |
8714mm |
|
Width(to outside of wheels) |
2900mm |
|
Bucket width |
3048mm |
|
Height(To the top of the cab) |
3550mm |
|
Wheel base |
3300mm |
|
Rated bucket capacity |
3.7M3 |
|
Max. dump clearance |
3325mm |
|
Dump reach |
1433mm |
|
Min. turning radius(wheel) |
6240mm |
| Engine Model | SC11CB240.1G2B1 |
|
Rated output |
174.5KW |
|
Rated speed |
2200(r/min) |
|
Max. drawing force |
180kN |
|
Size of tire |
23.5-25-20PR |
|
Type of traveling brake |
Caliper disc brake |
|
Air pressure |
6-7.5(kgf/cm2) |
|
Fuel(diesel) |
350 L |
|
Oil for converter and gear box |
45 L |
|
Oil for hydraulic system |
245 L |
| Transmission Model | 4WG200 |
FEATURES
1.Frame The innovative design of the main hinge of the frame "matches" the tapered roller bearing structure to increase the contact area and ensure the reliability of the hinge even under severe working conditions;
2. Transformation System
ZF4WG200 dual-transformation system is adopted, and the gearbox is an electro-hydraulic power-shift fixed-axis type, which can realize forced deceleration, easy and safe operation, and high operating efficiency;
3.Hydraulic system
Based on simulation and test verification, innovative design of the hydraulic system for diverting heat dissipation can make the hydraulic system of the whole machine obtain reasonable and sufficient heat dissipation under any working conditions, and improve the efficiency of the radiator and the reliability of the hydraulic system;
4.Canbin The large-opening design of the T-series exterior cover allows both the front air inlet and rear air outlet of the radiator to be opened. The new cab is upgraded, with super strong sealing, and the noise of the whole machine is far lower than the national standard;
FAQ
1.Why choose us?
CHANGLIN WEA is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7*24 after-sale services.
