Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: ZL50T
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD13800/unit
Packaging Details: Nude
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 unit/momth
Rated load: |
5000KG |
Rated bucket capacity: |
3.1m3 |
Dump Clearance: |
3136mm |
Dump Reach: |
1171mm |
Diesel engine: |
WEICHAI WD10G |
Rated output: |
162KW |
Gear positions: |
2 Forward , 1 Reverse |
Length×Width×Height: |
8020*2800*3450mm |
Operating weight: |
16500KG |
Wheel base: |
3100mm |
Size Of Tire: |
23.5-25-20PR |
Transmission: |
ADVANCE |
System Pressure: |
16MPa |
Rated load: |
5000KG |
Rated bucket capacity: |
3.1m3 |
Dump Clearance: |
3136mm |
Dump Reach: |
1171mm |
Diesel engine: |
WEICHAI WD10G |
Rated output: |
162KW |
Gear positions: |
2 Forward , 1 Reverse |
Length×Width×Height: |
8020*2800*3450mm |
Operating weight: |
16500KG |
Wheel base: |
3100mm |
Size Of Tire: |
23.5-25-20PR |
Transmission: |
ADVANCE |
System Pressure: |
16MPa |

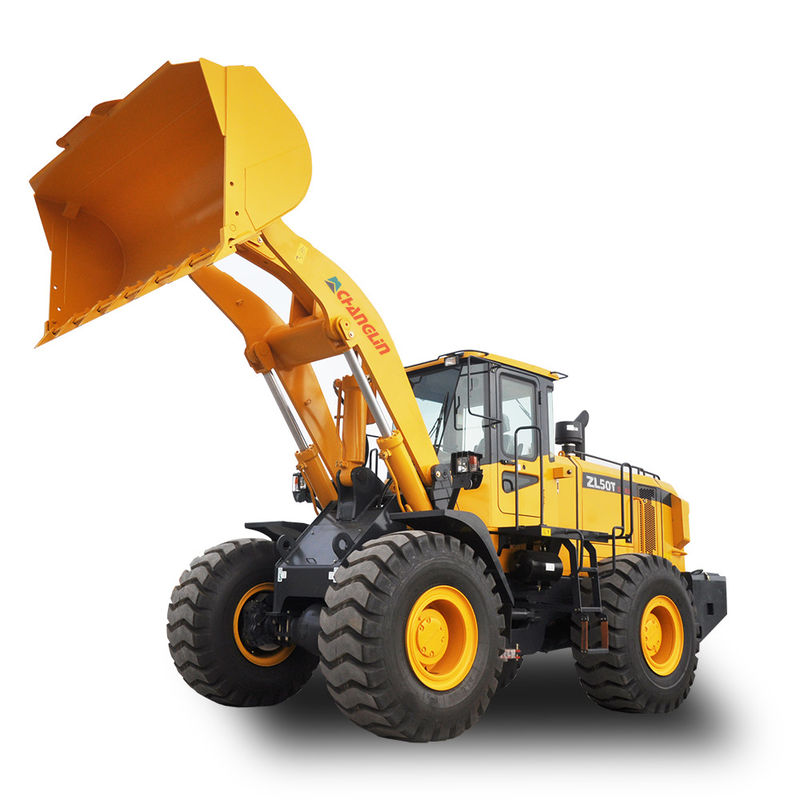

WHEEL LOADER ZL50T
ZL50T wheel loader has a fast working speed, a smaller turning radius, and the product is flexible and flexible. It can not only adapt to the operation requirements of narrow sites, but also has the advantage of a long car body and a large overturning load, and the whole machine has a strong carrying capacity. The machine shows high efficiency and fuel saving everywhere, and is suitable for shovel loading of loose materials, especially for coal yard and cargo yard. Diverse construction sites such as earthwork, coal yard, new rural construction and equipment rental provide perfect return on investment.
| Rated load | 5000 KG |
| Rated bucket capacity | 3.1 M3 |
| Dump Clearance | 3136 mm |
| Dump Reach | 1171 mm |
| Max. drawing force | 170 KN |
| Diesel engine | WEICHAI WD10G |
| Rated output | 162 KW |
| Transmission | ADVANCE |
| Gear positions | 2 forward, 1 reverse |
| Length×Width×Height | 8020×2800×3450 mm |
| Operating weight | 16500 KG |
| Wheel base | 3100 mm |
FEATURES
1.Canbin Comfortable and safe cockpit
2. Engine The high-power and high-efficiency Weichai engine is used, which has good reliability and meets the Euro II emission standard. Through reasonable power matching, the breakout force and traction force are greatly improved. At the same time, the working cycle time is shortened and the operation economy is improved.
3.Working system The optimization and improvement of the working device makes the motion relationship of the working device of the whole machine more reasonable. The single rocker arm Z-shaped reverse six-link mechanism, after the optimized design, has a high and fast lifting speed, and the unloading height can reach 3050mm. The breakout force can reach 160KN, the action time of the working device is short, the operation cycle is short, and its high efficiency can be shown during loading and unloading operations. Sealed pin design, lubrication system has been better guaranteed.
4. Steering system It adopts full hydraulic steering gear, which is easy to operate, compact in structure and convenient in maintenance.
FAQ
1.Why choose us?
CHANGLIN WEA is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7*24 after-sale services.
