Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: PY240H
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD45000-48000
Packaging Details: Nude
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 90 set/momth
Model: |
PY240H |
Power Type: |
Diesel |
Engine Model: |
Cummins 6CTA8.3-C240 |
Dimension(L×W×H): |
9980×3100×3680（mm） |
Operating Weight(Standard): |
20000KG |
Tractive Force: |
108KN |
Maximum Lift Above Ground: |
450mm |
Maximum Grading Depth: |
500mm |
Maximum Blade Position Angle: |
90° |
Blade Cutting Angle: |
29°~77° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4420×610mm |
Model: |
PY240H |
Power Type: |
Diesel |
Engine Model: |
Cummins 6CTA8.3-C240 |
Dimension(L×W×H): |
9980×3100×3680（mm） |
Operating Weight(Standard): |
20000KG |
Tractive Force: |
108KN |
Maximum Lift Above Ground: |
450mm |
Maximum Grading Depth: |
500mm |
Maximum Blade Position Angle: |
90° |
Blade Cutting Angle: |
29°~77° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4420×610mm |

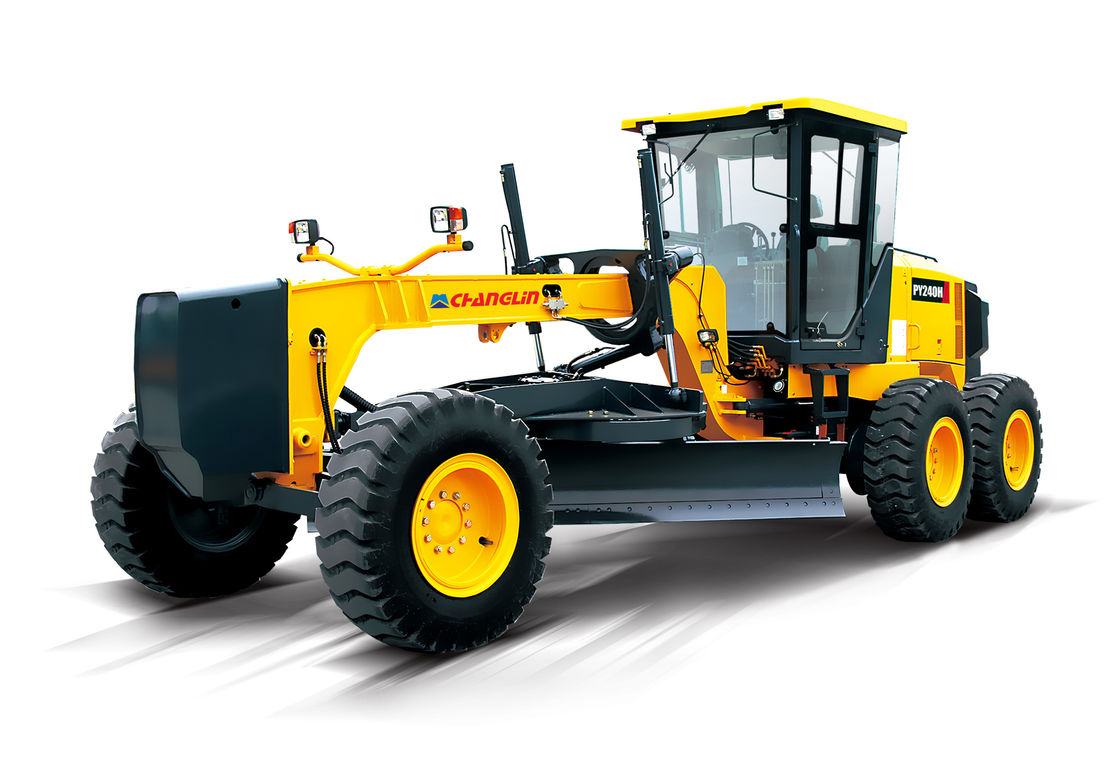

PY240H Motor Grader
PY240H motor grader is equipped with Cummins engine, and adopts box-type chassis frame and advanced transmission to enable it capable of performing heavy-duty tasks. This motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.
| Engine model | Cummins 6CTA8.3-C240 |
| Rated power | 179KW@2200(rpm) |
| Dimension(L×W×H) | 9980×3100×3680(mm) |
| Operating weight(Standard) | 20000KG |
| Tractive force | 108KN |
| Max. steering angle of front wheels | 49° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | 16° |
| Max. oscillation angle of balance box | 13° |
| Length to Face of Fork (Without Fork) | 26° |
| Min. turning radius using articulation | 8.3 m |
| Maximum lift above ground | 450 mm |
| Maximum grading depth | 500 mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 29°~77° |
| Moldboard width × height | 4420×610mm |
FEATURES
1.HIGH PERFORMANCE AND LOW EMISSION ENGINE
Cummins turbocharged engine, realizes high productivity and low fuel consumption. Durable mechanical inline fuel injection system provides precise throttle control and thus it delivers higher work speeds with high horsepower.
2.RELIABLE AND PROVEN TRANSMISSION
Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient.ZF-technology powershift transmission is best matched with Cummins engine and is reliable and easy to operate, suited for all types of working conditions.
3.Axle Adopt large size rear drive axle, the transmission reliability is stronger.
4.Automatic Leveling Device Option
As a 2D control system, Automatic Leveling Device offers precise and reliable height and slope control and a high level of flexibility in the choice of sensors and fields of application.
FAQ
1.Why Choose Us?
CHANGLIN WEA Is Committed To Offer Not Only Products With High Quality And Performance And Competitive
Price, But Also In-Time Delivery And Comprehensive 7*24 After-Sale Services.
