Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: PY190H
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD38000-40000
Packaging Details: Nude
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 90 set/momth
Model: |
PY190H |
Power Type: |
Diesel |
Engine Model: |
Cummins 6CTA8.3-C190 |
Dimension(L×W×H): |
8945×2600×3420（mm） |
Operating Weight(Standard): |
15600KG |
Tractive Force: |
80.2KN |
Maximum Lift Above Ground: |
450mm |
Maximum Grading Depth: |
535mm |
Maximum Blade Position Angle: |
90° |
Blade Cutting Angle: |
29°~77° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4268×580mm |
Model: |
PY190H |
Power Type: |
Diesel |
Engine Model: |
Cummins 6CTA8.3-C190 |
Dimension(L×W×H): |
8945×2600×3420（mm） |
Operating Weight(Standard): |
15600KG |
Tractive Force: |
80.2KN |
Maximum Lift Above Ground: |
450mm |
Maximum Grading Depth: |
535mm |
Maximum Blade Position Angle: |
90° |
Blade Cutting Angle: |
29°~77° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4268×580mm |

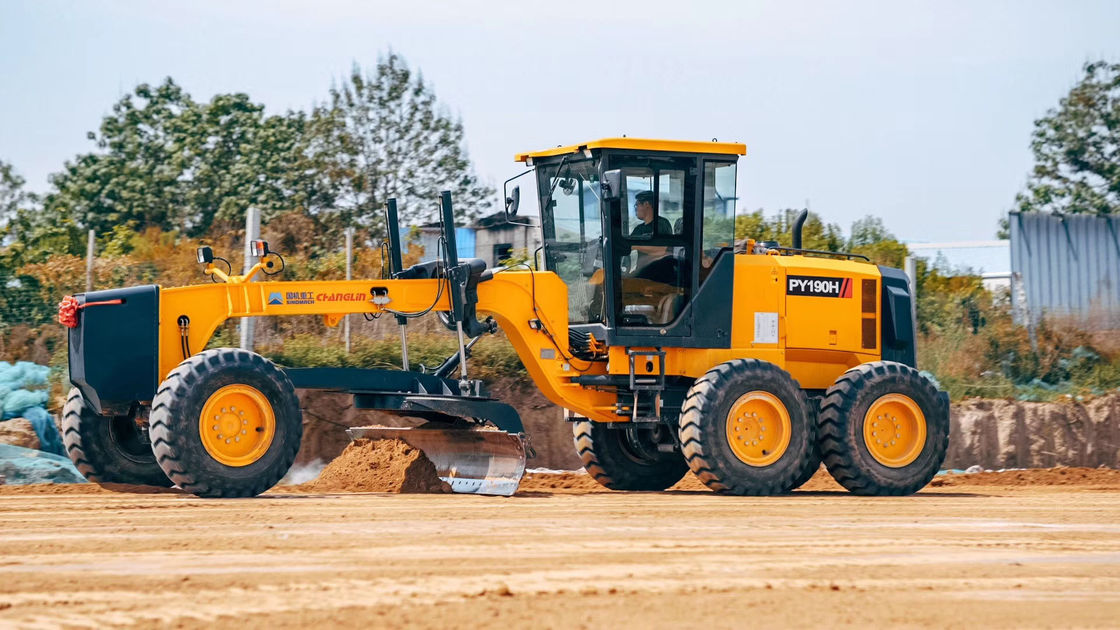

PY190H Motor Grader
PY190H motor grader operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. High stability and powerful traction are guaranteed by using hydraulic lock and auto lock/unlock NO-SPIN differential. When cutting hard surfaces, the optimized axle load allocation makes the motor grader to provide superior stability and high work efficiency.
| Engine model | Cummins 6CTA8.3-C190 |
| Rated power | 142KW@2200(rpm) |
| Dimension(L×W×H) | 8945×2600×3420(mm) |
| Operating weight(Standard) | 15600KG |
| Tractive force | 80.2KN |
| Max. steering angle of front wheels | 49° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | 16° |
| Max. oscillation angle of balance box | 13° |
| Length to Face of Fork (Without Fork) | 26° |
| Min. turning radius using articulation | 7.3 m |
| Maximum lift above ground | 450 mm |
| Maximum grading depth | 535 mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 29°~77° |
| Moldboard width × height | 4268×580mm |
FEATURES
1.EXCELLENT VISIBILITY
Excellent visibility and layout side pillar boosts operator’s confidence and productivity in all grader applications. Well-positioned blade linkage provides an unobstructed view of the moldboard and front tires.
1.HIGH PERFORMANCE AND LOW EMISSION ENGINE
Cummins turbocharged engine, realizes high productivity and low fuel consumption. Durable mechanical inline fuel injection system provides precise throttle control and thus it delivers higher work speeds with high horsepower.
2.Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
3.Front Dozer Option The front Dozer is a front mounted equipment used for spreading materials such as gravel piles or blading at the front of the machine where is difficult to access with the moldboard.
4.Ripper(Rear) and Scarifier(Mid-mount) Option
Digs up hard material cannot be removed by the moldboard. The V-type scarifier can accommodate up to 11 teeth, the ripper also accommodate 3 -9 shanks.
5.Automatic Leveling Device Option
As a 2D control system, Automatic Leveling Device offers precise and reliable height and slope control and a high level of flexibility in the choice of sensors and fields of application.
FAQ
1.Why Choose Us?
CHANGLIN WEA Is Committed To Offer Not Only Products With High Quality And Performance And Competitive
Price, But Also In-Time Delivery And Comprehensive 7*24 After-Sale Services.
