Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: PY130H
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD10000
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
PY130H |
Length×Width×Height(mm): |
8060×2600×3370 |
Operating Weight (Kg): |
12000 |
Blade Dimensions (mm): |
3658×545×16 |
Traveling Gears: |
6 Forward 3Reverse |
Traveling Speed Forward(km/h): |
6.9/10.7/17.3/26/37.8/53.4 |
Traveling Speed Reverse(km/h): |
6.9/17.3/37.8 |
Diesel Engine: |
Cummins 6BT5.9-C130 |
Rated Output(KW): |
97KW |
Model: |
PY130H |
Length×Width×Height(mm): |
8060×2600×3370 |
Operating Weight (Kg): |
12000 |
Blade Dimensions (mm): |
3658×545×16 |
Traveling Gears: |
6 Forward 3Reverse |
Traveling Speed Forward(km/h): |
6.9/10.7/17.3/26/37.8/53.4 |
Traveling Speed Reverse(km/h): |
6.9/17.3/37.8 |
Diesel Engine: |
Cummins 6BT5.9-C130 |
Rated Output(KW): |
97KW |

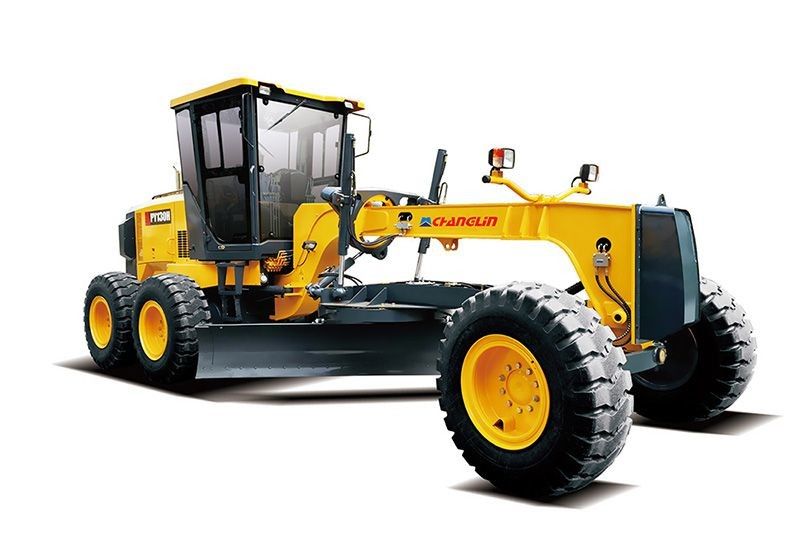

Our 713H motor grader adopts power shift transmission featuring sing-handle manipulation and electro-hydraulic control. With 6 forward and 3 reverse gears shifting, the vehicle is easy and convenient to operate. It also utilizes a highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit. Moreover, the fully hydraulic brake system provides high working safety and reliability for the equipment.
Our road grader is equipped with NO-SPIN differential having auto locking and unlocking function, which ensures great stability and powerful traction. Due to the reasonable axle load allocation, the vehicle can work stably when cutting hard ground surface. It is able to finish heavy-duty task because of the box-type frame and advanced transmission. This engineering machinery can also accomplish various tasks through the flexible blade suspension system and articulated frame.
High Performance, Low Emission EngineThe use of Cummins turbocharged engine enables the motor grader to achieve excellent productivity and low fuel consumption. The greater work speeds with high horsepower are provided thanks to the precise throttle control offered by the durable mechanical inline fuel injection system.
Reliable Transmission with Proven Performance
The operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. Paired with ZF-technology power-shift transmission, the Cummins engine makes the motor grader more dependable and simple to use, and suitable for all kinds of working environments.
Robust Chassis Frame
Box-type chassis frame and advanced transmission allows it to execute heavy-duty tasks.
Superior StabilityHydraulic lock and auto lock/unlock NO-SPIN differential ensure outstanding stability and powerful traction.
Flexible Blade MobilityThis motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.
Work Tools and Attachments Front Dozer Blades
The front dozer, or front blade, is a piece of motor grader attachments that is mounted in the front of the vehicle for spreading gravel piles, or pushing materials in corners where is difficult to reach with the moldboard.
Work Tools and Attachments Rear Rippers & Mid-mount Scarifiers
Attachments such as rippers and scarifiers are tools used for digging up asphalt, rocks or other hard materials that cannot be removed by the moldboard. The V-type scarifier can accommodate up to 11 teeth, the ripper also can accommodate 3-9 shanks.
