Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: YL1016
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD20000-40000
Packaging Details: Nude
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 90 set/momth
Model: |
YL1016 |
Power Type: |
Diesel |
Engine Model: |
CUMMINS4BT3.9 |
Dimension(L×W×H): |
4780x2280x3200（mm） |
Operating Weight(Standard): |
16000KG |
Wheelbase: |
3800mm |
Max Travel Apeed: |
14.7 |
Tire Quantity (Front+Rear): |
4+5 |
Tire Size: |
11.0-20-16 |
Wheel Rim Size: |
8.00V-20 |
Minimum Turning Radius: |
7500 |
Rolling Compaction Width: |
2280mm |
Model: |
YL1016 |
Power Type: |
Diesel |
Engine Model: |
CUMMINS4BT3.9 |
Dimension(L×W×H): |
4780x2280x3200（mm） |
Operating Weight(Standard): |
16000KG |
Wheelbase: |
3800mm |
Max Travel Apeed: |
14.7 |
Tire Quantity (Front+Rear): |
4+5 |
Tire Size: |
11.0-20-16 |
Wheel Rim Size: |
8.00V-20 |
Minimum Turning Radius: |
7500 |
Rolling Compaction Width: |
2280mm |

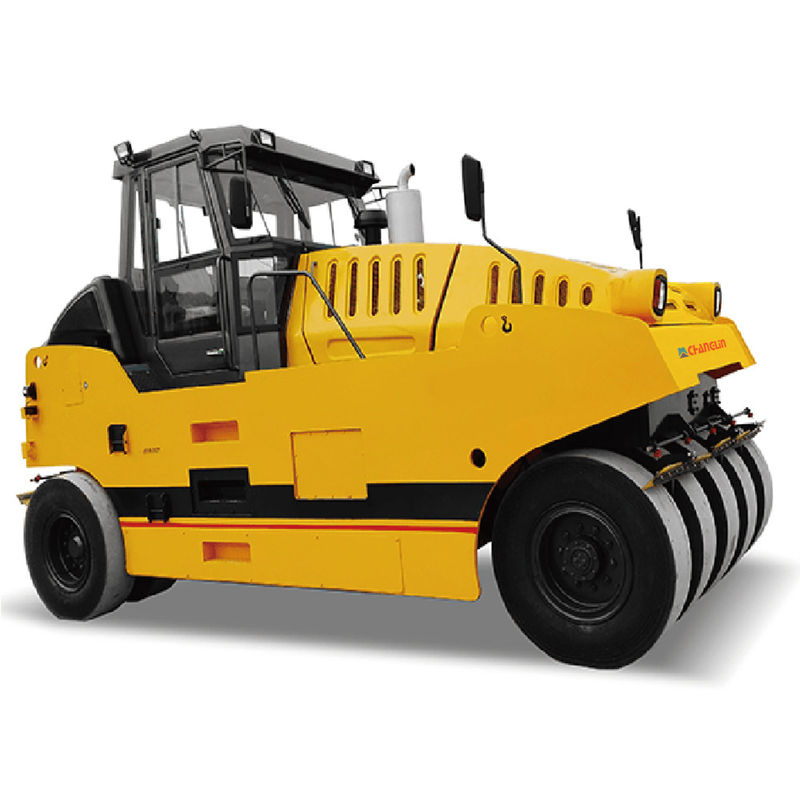

YL1016 Road ROLLER
YL1016 road roller is used for the compaction work on roadbeds such as high-grade highway asphalt layers and stabilized soils.
| Engine model | CUMMINS4BT3.9 |
| Rated power | 75KW/2200rpm |
| Dimension(L×W×H) | 4780x2280x3200(mm) |
| Operating weight(Standard) | 16000KG |
| Wheelbase | 3800mm |
| Max Travel speed | 14.7KM/H |
| Tire quantity (Front+Rear) | 4+5 |
| Tire size | 11.0-20-16 |
| Wheel rim size | 8.00V-20 |
| Minimum Turning radius | 7500 |
| Rolling compaction width | 2280mm |
| Grade ability | 30 |
| Fuel tank capacity | 223L |
| Hydraulic tank capacity | 91L |
FEATURES
1.The special inflated smooth tire has no damage to the compacted material, and the basic compaction performance can be changed by changing the tire load and the inflation pressure;
2.3 forward and two reverse gear shifting with synchronizer for smooth shifting without impact
3.With two sets of braking system for driving and parking, the whole machine is safe and reliable.
4.Two sets of sprinkler systems, one set to spray the tire tread, one set to increase the weight of the machine, or spray the road surface
5.Reversing and shifting one-stick operation, easy to operate;
