Highlight:

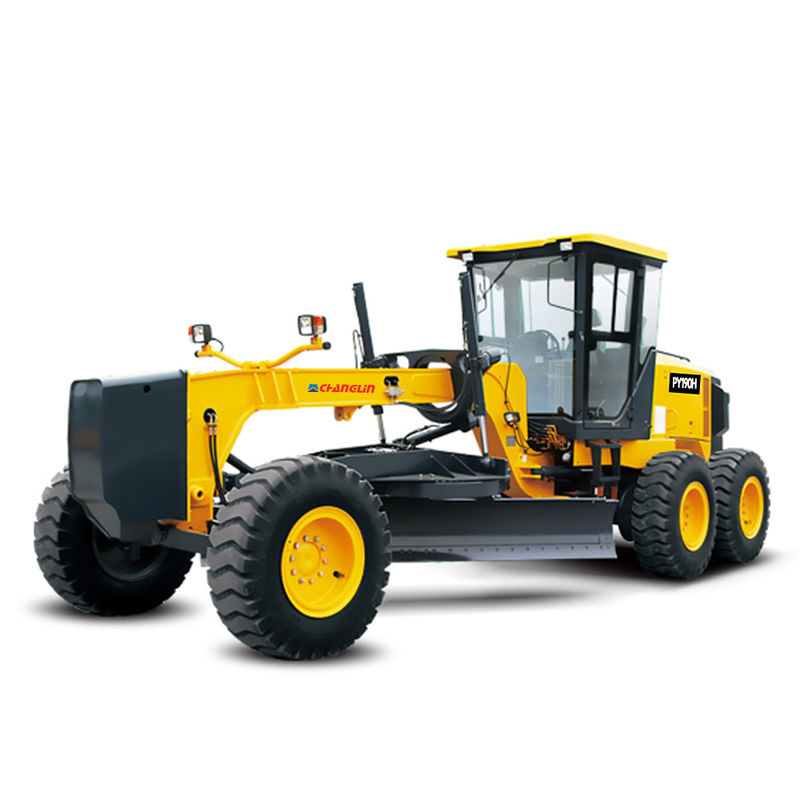

Changlin Road Grading Machine
, PY190H Road Grading Machine
Engine Model: |
Cummins 6CTA8.3-C190 |
Rated Power: |
142KW@2200rpm |
Dimension(L×W×H): |
8945×2600×3420（mm) |
Operating Weight(Standard): |
15600KG |
Travelling Speed ,forward: |
6.5/11.4/14.6/24.8/30/49.2 |
Travelling Speed ,reverse: |
6.5/14.6/30 |
Tractive Force(f=0.75): |
80.2KN |
Max. Steering Angle Of Front Wheels: |
49° |
Max. Lean Angle Of Front Wheels: |
17° |
Max. Oscillation Angle Of Front Axle: |
16° |
Max. Oscillation Angle Of Balance Box: |
13° |
Frame Articulation Angle: |
26° |
Min. Turning Radius Using Articulation: |
7.3m |
Maximum Lift Above Ground: |
450mm |
Maximum Grading Depth: |
535mm |
Maximum Blade Position Angle: |
90° |
Blade Cutting Angle: |
29°~77° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4268×580mm |
Grader Balde 14 Feet / 12feet Changlin PY190H Road Grading Machine Hydraulic Brake System
Grader Balde 14 Feet Or 12feet Changlin PY190H 190Hp Hydraulic Brake System With Komatsu Technical Similar To XCMG
Changlin PY190H Motor grader
CHANGLN PY190H
*Superior Stability
Hydraulic lock and auto lock/unlock NO-SPIN differential ensure outstanding stability and powerful traction.
*Flexible Blade Mobility
This motor grader has an extensive working range due to its flexible blade suspension system and
articulated frame.
*High Durability, Precise Control
The drawbar is constructed with A-shaped and U-shaped frame for high durability and precise blade control.
*Smooth Operation
A turntable of four-inner gear guide type is included in the heat-treated rotating ring structure, which allows for smooth 360° rotation. The optimal curvature of the moldboard enables all types of soil to be moved freely and efficiently.
*Ideal Axle Load Allocation
Axle loads are optimally allocated for superior stability and high work efficiency even when cutting hard surfaces.
一,HIGH PERFORMANCE AND LOW EMISSION ENGINE
Cummins turbocharged engine, realizes high productivity and low fuel consumption. Durable mechanical
inline fuel injection system provides precise throttle control and thus it delivers higher work speeds with high horsepower.
二,RELIABLE AND PROVEN TRANSMISSION
Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient
ZF-technology powershift transmission is best matched with Cummins engine and is reliable and easy to operate, suited for all types of working conditions.
三,Box-type d frame and advanced T/M enable it to complete heavy-duty work
四,Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
五,A wide working range is accomplished through flexible blade suspension system and articulated frame
The drawbar is composed of strong A & U-shaped frame for strength durability, and precise blading control.
The heat-treated rotating ring structure is equipped with four turntable of inner gear guide type, can obtain
360° smooth rotation. The moldboard provides optimal curvature that helps move all soil types quickly and efficiently
六,Ideal axle load allocation provides excellent stability while cutting hard surface
七,Serviceable, efficient hydraulic system enables every part to be fully used
Reliable full hydraulic brake system ensures safety
八,EXCELLENT VISIBILITY
Excellent visibility and layout side pillar boosts operator’s confidence and productivity in all grader applications.
Well-positioned blade linkage provides an unobstructed view of the moldboard and front tires.
九,WORK TOOL AND ATTACHMENTS
Front Dozer Option
The front Dozer is a front mounted equipment used for spreading materials such as gravel piles or blading
at the front of the machine where is difficult to access with the moldboard.
Ripper(Rear) and Scarifier(Mid-mount) Option
Digs up hard material cannot be removed by the moldboard. The V-type scarifier can accommodate up to
11 teeth, the ripper also accommodate 3 -9 shanks.
十,Automatic Leveling Device Option
As a 2D control system, Automatic Leveling Device offers precise and reliable height and slope control and
a high level of flexibility in the choice of sensors and fields of application.
十一,Adopt large size rear drive axle. With the same specification as 170H grader, the transmission reliability is stronger.
十二,Double row roller chain,Fully guaranteed strength (tensile strength of 26 tons, far higher than the
peer and national standards).
