Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: PY240H
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd85000/unit-usd96000/unit
Packaging Details: by container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 1000 units per year
Engine Model: |
Cummins 6CTA8.3-C240 |
Rated Power: |
179KW@2200(rpm) |
Dimension(L×W×H): |
9980×3100×3680（mm） |
Operating Weight(Standard): |
20000KG |
Travelling Speed ,forward: |
4.96/8.55/11.3/19.32/24.25/38.79 |
Travelling Speed ,reverse: |
4.96/11.3/24.25 |
Tractive Force(f=0.75): |
108KN |
Max. Steering Angle Of Front Wheels: |
49° |
Max. Lean Angle Of Front Wheels: |
17° |
Max. Oscillation Angle Of Front Axle: |
16° |
Max. Oscillation Angle Of Balance Box: |
13° |
Frame Articulation Angle: |
26° |
Min. Turning Radius Using Articulation: |
8.3m |
Maximum Lift Above Ground: |
450mm |
Maximum Grading Depth: |
500mm |
Maximum Blade Position Angle: |
90° |
Blade Cutting Angle: |
29°~77° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4420×610mm |
Engine Model: |
Cummins 6CTA8.3-C240 |
Rated Power: |
179KW@2200(rpm) |
Dimension(L×W×H): |
9980×3100×3680（mm） |
Operating Weight(Standard): |
20000KG |
Travelling Speed ,forward: |
4.96/8.55/11.3/19.32/24.25/38.79 |
Travelling Speed ,reverse: |
4.96/11.3/24.25 |
Tractive Force(f=0.75): |
108KN |
Max. Steering Angle Of Front Wheels: |
49° |
Max. Lean Angle Of Front Wheels: |
17° |
Max. Oscillation Angle Of Front Axle: |
16° |
Max. Oscillation Angle Of Balance Box: |
13° |
Frame Articulation Angle: |
26° |
Min. Turning Radius Using Articulation: |
8.3m |
Maximum Lift Above Ground: |
450mm |
Maximum Grading Depth: |
500mm |
Maximum Blade Position Angle: |
90° |
Blade Cutting Angle: |
29°~77° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4420×610mm |

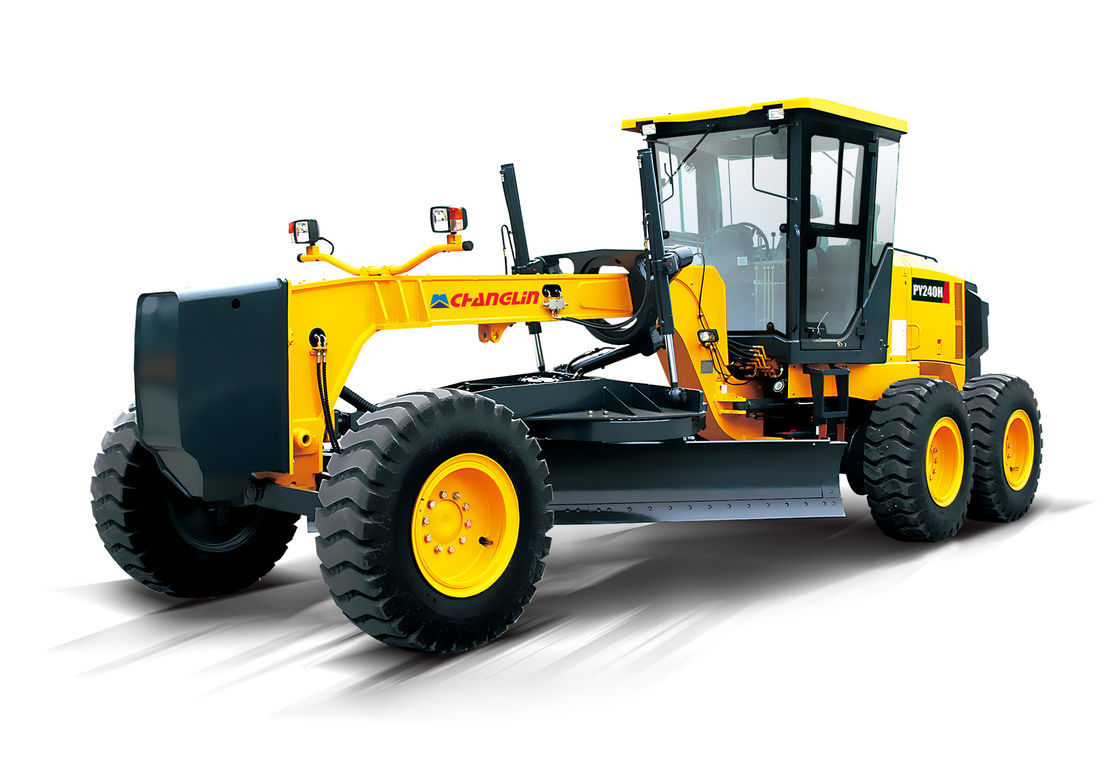

Grader Balde 14 feet or 12feet Changlin PY240H 240Hp hydraulic brake system with Komatsu technical better than XCMG
Scope of Application:
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
Main Features:
Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient
Hydraulic lock, auto lock/unlockdifferential ensures stability and powerful traction
Ideal axle load allocation provides excellent stability while cutting hard surface
Serviceable, efficient hydraulic system enables every part to be fully used
Box-typed frame and advanced T/M enable it to complete heavy-duty work
A wide working range is accomplished through flexible blade suspension system and
articulated frame
一,HIGH PERFORMANCE AND LOW EMISSION ENGINE
Cummins turbocharged engine, realizes high productivity and low fuel consumption. Durable mechanical
inline fuel injection system provides precise throttle control and thus it delivers higher work speeds with high horsepower.
二,RELIABLE AND PROVEN TRANSMISSION
Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient
ZF-technology powershift transmission is best matched with Cummins engine and is reliable and easy to operate, suited for all types of working conditions.
三,Box-type d frame and advanced T/M enable it to complete heavy-duty work
四,Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
五,A wide working range is accomplished through flexible blade suspension system and articulated frame
The drawbar is composed of strong A & U-shaped frame for strength durability, and precise blading control.
The heat-treated rotating ring structure is equipped with four turntable of inner gear guide type, can obtain
360° smooth rotation. The moldboard provides optimal curvature that helps move all soil types quickly and efficiently
六,Ideal axle load allocation provides excellent stability while cutting hard surface
七,Serviceable, efficient hydraulic system enables every part to be fully used
Reliable full hydraulic brake system ensures safety
八,EXCELLENT VISIBILITY
Excellent visibility and layout side pillar boosts operator’s confidence and productivity in all grader applications.
Well-positioned blade linkage provides an unobstructed view of the moldboard and front tires.
九,WORK TOOL AND ATTACHMENTS
Front Dozer Option
The front Dozer is a front mounted equipment used for spreading materials such as gravel piles or blading
at the front of the machine where is difficult to access with the moldboard.
Ripper(Rear) and Scarifier(Mid-mount) Option
Digs up hard material cannot be removed by the moldboard. The V-type scarifier can accommodate up to
11 teeth, the ripper also accommodate 3 -9 shanks.
十,Automatic Leveling Device Option
As a 2D control system, Automatic Leveling Device offers precise and reliable height and slope control and
a high level of flexibility in the choice of sensors and fields of application.
十一,Adopt large size rear drive axle. With the same specification as 170H grader, the transmission reliability is stronger.
十二,Double row roller chain,Fully guaranteed strength (tensile strength of 26 tons, far higher than the
peer and national standards).
FAQ
1.Why choose us?
CHANGLIN WEA is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7*24 after-sale services.
