Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: PY180H
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD10000
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
PY190H |
Length×Width×Height(mm): |
8630×2600×3370 |
Operating Weight (Kg): |
14500 |
Blade Dimensions (mm): |
3658×545×16 |
Traveling Gears: |
6 Forward 3 Reverse |
Traveling Speed Forward(km/h): |
6.5/11.4/14.6/24.8/30/49.2 |
Traveling Speed Reverse(km/h): |
6.5/14.6/30 |
Diesel Engine: |
Cummins 6BT5.9-C180 |
Rated Output(KW): |
132 |
Model: |
PY190H |
Length×Width×Height(mm): |
8630×2600×3370 |
Operating Weight (Kg): |
14500 |
Blade Dimensions (mm): |
3658×545×16 |
Traveling Gears: |
6 Forward 3 Reverse |
Traveling Speed Forward(km/h): |
6.5/11.4/14.6/24.8/30/49.2 |
Traveling Speed Reverse(km/h): |
6.5/14.6/30 |
Diesel Engine: |
Cummins 6BT5.9-C180 |
Rated Output(KW): |
132 |

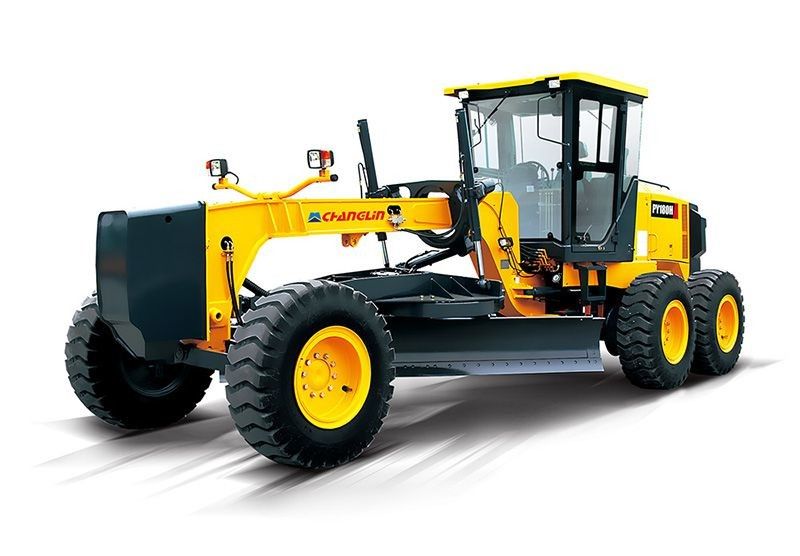

The PY180H motor grader is simple and convenient to operate due to it has a single-handle electro-hydraulic operated power shift transmission with 6 forward and 3 reverse gears. The exclusive hydraulic lock and auto lock/unlock NO-SPIN differential ensures high stability and powerful traction. Thanks to the optimized axle load allocation, the motor grader can deliver high work efficiency and reliability even when cutting hard surfaces.
High Performance, Low Emission EngineThe use of Cummins turbocharged engine enables the motor grader to achieve excellent productivity and low fuel consumption. The greater work speeds with high horsepower are provided thanks to the precise throttle control offered by the durable mechanical inline fuel injection system.
Reliable Transmission with Proven Performance
The operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. Paired with ZF-technology power-shift transmission, the Cummins engine makes the motor grader more dependable and simple to use, and suitable for all kinds of working environments.
Robust Chassis FrameBox-type chassis frame and advanced transmission allows it to execute heavy-duty tasks
Reliable Hydraulics
Every component can be fully leveraged because of the deployment of an efficient hydraulic system. Safety is ensured by a dependable hydraulic brake system.
