Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: PY190H
Payment & Shipping Terms
Model: |
PY190H |
Length×Width×Height(mm): |
9235×2600×3370 |
Operating Weight (Kg): |
15600(SHANGCHAI) 15900 (Cummins) |
Blade Dimensions (mm): |
4268×545×16 |
Traveling Gears: |
6 Forward 3 Reverse |
Traveling Speed Forward(km/h): |
6.5/11.4/14.6/24.8/30/49.2 |
Traveling Speed Reverse(km/h): |
6.5/14.6/30 |
Diesel Engine: |
SHANGCHAI SC11CB195G2B1 Cummins 6BT5.9-C180 |
Rated Output(KW): |
143/142 |
Name: |
Changlin Motorized Road Grader |
Model: |
PY190H |
Length×Width×Height(mm): |
9235×2600×3370 |
Operating Weight (Kg): |
15600(SHANGCHAI) 15900 (Cummins) |
Blade Dimensions (mm): |
4268×545×16 |
Traveling Gears: |
6 Forward 3 Reverse |
Traveling Speed Forward(km/h): |
6.5/11.4/14.6/24.8/30/49.2 |
Traveling Speed Reverse(km/h): |
6.5/14.6/30 |
Diesel Engine: |
SHANGCHAI SC11CB195G2B1 Cummins 6BT5.9-C180 |
Rated Output(KW): |
143/142 |
Name: |
Changlin Motorized Road Grader |

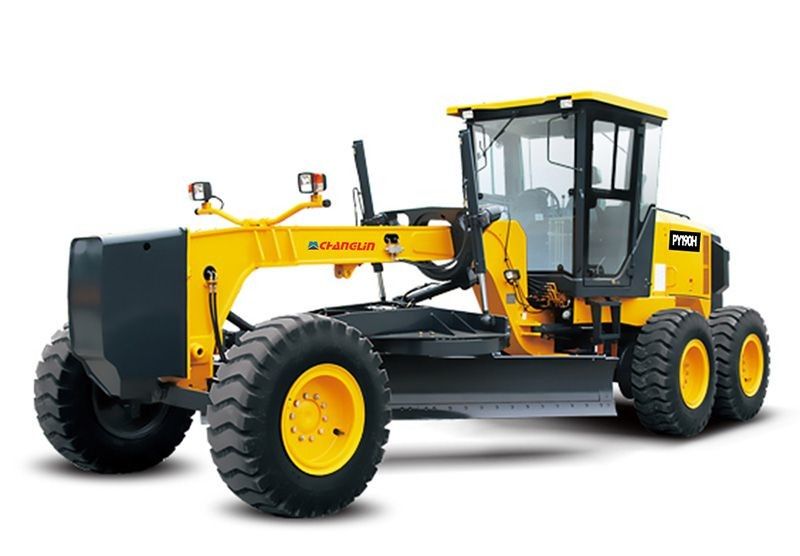

The PY190H motor grader is powered by reliable Shangchai SC11CB195G2B1 engine or genuine Cummins engine. The operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. High stability and powerful traction are guaranteed by using hydraulic lock and auto lock/unlock NO-SPIN differential. When cutting hard surfaces, the optimized axle load allocation makes the motor grader to provide superior stability and high work efficiency.
Work Tools and Attachments Rear Rippers & Mid-mount ScarifiersRear Axle Drive System
