PY220H Motor Grader Road Construction With Shangchai Engine / Hydraulic System

Name: PY220H Motor Grader Road Construction With Shangchai Engine / Hydraulic System
Brand: CHANGLIN WEA CO., LTD
SKU: PY220H
Price: 7,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: changlin

Model Number: PY220H

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5000-USD10000

Delivery Time: 5-8work days

Payment Terms: L/C, T/T

Supply Ability: 30units/per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            PY220H Motor Grader, Motor Grader Road Construction, Motor Grader For Road Construction


Model:	PY220H	Length×Width×Height(mm):	9235×2600×3370
Operating Weight (Kg):	16100	Blade Dimensions (mm):	4320×545×16
Traveling Gears:	6 Forward 3 Reverse	Traveling Speed Forward(km/h):	6.7/10.2/15.2/22.5/31.6/45.1
Traveling Speed Reverse(km/h):	6.7/15.1/31.3	Diesel Engine:	SHANGCHAI SC11CB220G2B1
Rated Output(KW):	162

Model:	PY220H
Length×Width×Height(mm):	9235×2600×3370
Operating Weight (Kg):	16100
Blade Dimensions (mm):	4320×545×16
Traveling Gears:	6 Forward 3 Reverse
Traveling Speed Forward(km/h):	6.7/10.2/15.2/22.5/31.6/45.1
Traveling Speed Reverse(km/h):	6.7/15.1/31.3
Diesel Engine:	SHANGCHAI SC11CB220G2B1
Rated Output(KW):	162

Description

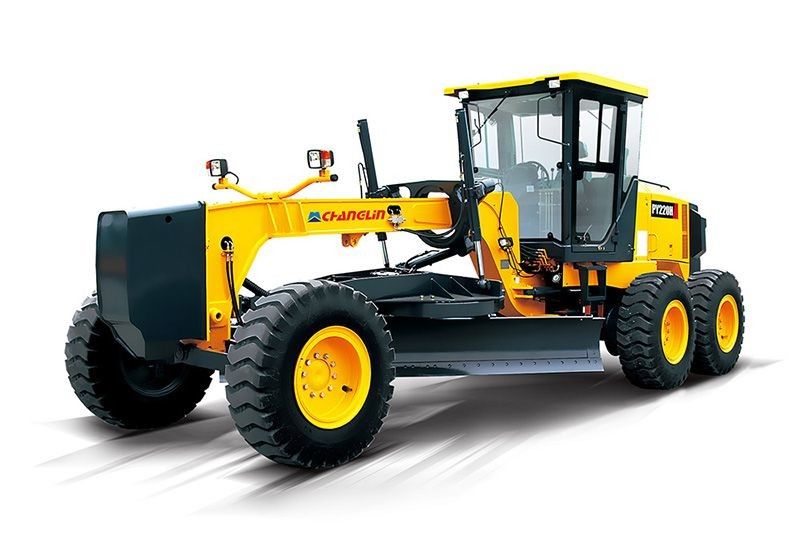

PY220H Motor Grader Road Construction With Shangchai Engine / Hydraulic System

MOTOR GRADERPY220H

Our PY220H motor grader adopts Shangchai engine and hydraulic system to ensure efficient control of every single part, thus achieving high efficiency operation. The motor grader can perform heavy-duty tasks thanks to the transmission system and box-type chassis frame. This construction machine also has a flexible blade suspension system and articulated frame, giving it a broad working range.

PY220H Motor Grader Road Construction With Shangchai Engine / Hydraulic System 0

Ideal Axle Load Allocation

Axle loads are optimally allocated for superior stability and high work efficiency even when cutting hard surfaces.

PY220H Motor Grader Road Construction With Shangchai Engine / Hydraulic System 1

Reliable HydraulicsEvery component can be fully leveraged because of the deployment of an efficient hydraulic system. Safety is ensured by a dependable hydraulic brake system.

PY220H Motor Grader Road Construction With Shangchai Engine / Hydraulic System 2

Excellent VisibilityThe spacious cab is designed with a side pillar layout for an excellent visibility that gives operator confidence to maneuver in various working conditions. The moldboard and front tires are clearly visible due to the well-positioned blade linkage.

PY220H Motor Grader Road Construction With Shangchai Engine / Hydraulic System 3 Automatic Leveling Device

The automatic leveling device as a 2D machine control system enables precise height and slope control, giving a high flexibility in the selection of sensors and application fields.
