Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: PY320H
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD200000
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
PY320T |
Engine Model: |
Cummins QSM11-C330 |
Rated Power: |
246kW@2100rpm |
Dimension(L×W×H): |
12500×3300×3700 (mm) |
Operating Weight (standard): |
28000KG |
Travelling Speed, Forward: |
5.5/8.6/13.3/20.3/29/43 |
Travelling Speed, Reverse: |
5.5/13.3/29 |
Tractive Force (f=0.75): |
144KN |
Max. Steering Angle Of Front Wheels: |
49° |
Max. Lean Angle Of Front Wheels: |
17° |
Max. Oscillation Angle Of Front Axle: |
15° |
Frame Articulation Angle: |
25° |
Min. Turning Radius Using Articulation: |
9m |
Maximum Lift Above Ground: |
515mm |
Maximum Grading Depth: |
735mm |
Maximum Blade Position Angle: |
80° |
Blade Cutting Angle: |
23°~73° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4620×695mm |
Model: |
PY320T |
Engine Model: |
Cummins QSM11-C330 |
Rated Power: |
246kW@2100rpm |
Dimension(L×W×H): |
12500×3300×3700 (mm) |
Operating Weight (standard): |
28000KG |
Travelling Speed, Forward: |
5.5/8.6/13.3/20.3/29/43 |
Travelling Speed, Reverse: |
5.5/13.3/29 |
Tractive Force (f=0.75): |
144KN |
Max. Steering Angle Of Front Wheels: |
49° |
Max. Lean Angle Of Front Wheels: |
17° |
Max. Oscillation Angle Of Front Axle: |
15° |
Frame Articulation Angle: |
25° |
Min. Turning Radius Using Articulation: |
9m |
Maximum Lift Above Ground: |
515mm |
Maximum Grading Depth: |
735mm |
Maximum Blade Position Angle: |
80° |
Blade Cutting Angle: |
23°~73° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4620×695mm |

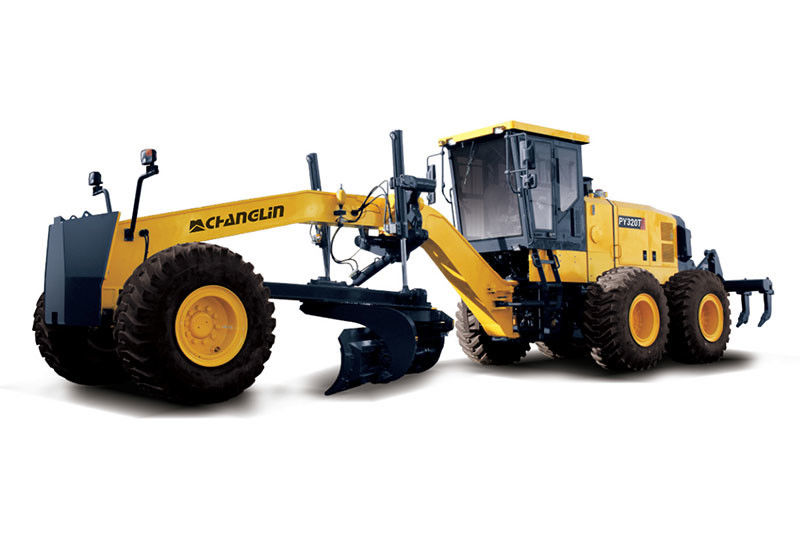

Equipped with Cummins engine, PY320T motor grader adopts high-strength slewing bearing and overload protection worm gear box, suitable for heavy load conditions. This motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.
High Performance, Low Emission Engine
The use of Cummins turbocharged engine enables the motor grader to achieve excellent productivity and low fuel consumption. The greater work speeds with high horsepower are provided thanks to the precise throttle control offered by the durable mechanical inline fuel injection system.
Reliable Transmission with Proven Performance
The operation is simple and convenient thanks to the single-handle electro-hydraulic controlled power-shift transmission with 6 forward and 3 reverse gears. Paired with ZF-technology power-shift transmission, the Cummins engine makes the motor grader more dependable and simple to use, and suitable for all kinds of working environments.
Reliable Hydraulics
Every component can be fully leveraged because of the deployment of an efficient hydraulic system. Safety is ensured by a dependable hydraulic brake system.
Work Tools and Attachments
Rear Rippers & Mid-mount ScarifiersAttachments such as rippers and scarifiers are tools used for digging up asphalt, rocks or other hard materials that cannot be removed by the moldboard. The V-type scarifier can accommodate up to 11 teeth, the ripper also can accommodate 3-9 shanks.
