Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: PY350T
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD200000
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
PY350T |
Engine Model: |
Cummins QSM11-C330 |
Rated Power: |
246kW@2100rpm |
Dimension(L×W×H): |
12500×3300×3700 (mm) |
Operating Weight (standard): |
28000KG |
Travelling Speed, Forward: |
5.5/8.6/13.3/20.3/29/43 |
Travelling Speed, Reverse: |
5.5/13.3/29 |
Tractive Force (f=0.75): |
144KN |
Max. Steering Angle Of Front Wheels: |
49° |
Max. Lean Angle Of Front Wheels: |
17° |
Max. Oscillation Angle Of Front Axle: |
15° |
Frame Articulation Angle: |
25° |
Min. Turning Radius Using Articulation: |
9m |
Maximum Lift Above Ground: |
515mm |
Maximum Grading Depth: |
735mm |
Maximum Blade Position Angle: |
80° |
Blade Cutting Angle: |
23°~73° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4620×695mm |
Name: |
Motor Grader Equipment |
Model: |
PY350T |
Engine Model: |
Cummins QSM11-C330 |
Rated Power: |
246kW@2100rpm |
Dimension(L×W×H): |
12500×3300×3700 (mm) |
Operating Weight (standard): |
28000KG |
Travelling Speed, Forward: |
5.5/8.6/13.3/20.3/29/43 |
Travelling Speed, Reverse: |
5.5/13.3/29 |
Tractive Force (f=0.75): |
144KN |
Max. Steering Angle Of Front Wheels: |
49° |
Max. Lean Angle Of Front Wheels: |
17° |
Max. Oscillation Angle Of Front Axle: |
15° |
Frame Articulation Angle: |
25° |
Min. Turning Radius Using Articulation: |
9m |
Maximum Lift Above Ground: |
515mm |
Maximum Grading Depth: |
735mm |
Maximum Blade Position Angle: |
80° |
Blade Cutting Angle: |
23°~73° |
Circle Reversing Rotation: |
360° |
Moldboard Width × Height: |
4620×695mm |
Name: |
Motor Grader Equipment |

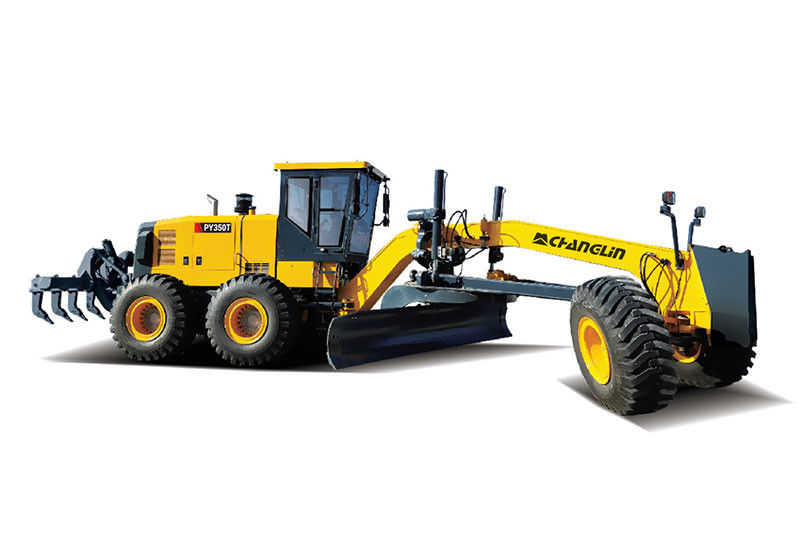

Equipped with Cummins engine, PY350T motor grader adopts high-strength slewing bearing and overload protection worm gear box, suitable for heavy load conditions. This motor grader has an extensive working range due to its flexible blade suspension system and articulated frame.
Robust Chassis Frame
Box-type chassis frame and advanced transmission allows it to execute heavy-duty tasks.
Smooth Operation
A turntable of four-inner gear guide type is included in the heat-treated rotating ring structure, which allows for smooth 360° rotation. The optimal curvature of the moldboard enables all types of soil to be moved freely and efficiently.
Rear Axle Drive System
By using large-size rear drive axle, the reliability of the transmission is significantly improved.
Automatic Leveling Device
The automatic leveling device as a 2D machine control system enables precise height and slope control, giving a high flexibility in the selection of sensors and application fields.
