Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: WZC20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD10000
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
WZC20 |
Length (with Bucket On Ground) (mm): |
5835 |
Width (mm): |
2240 |
Load Bucket Width (mm): |
2313 |
Height (To The Top Of The Cab) (mm): |
2720 |
Height (To The Top Of The Digging Pole) (mm): |
3548 |
Wheelbase (mm): |
2155.5 |
Min. Ground Clearance (mm): |
275 |
Rated Load (Kg): |
1700 |
Operating Weight: |
8000 |
Rated Digging Bucket Capacity (m3): |
1.0 |
Rated Digging Bucket Capacity (m3): |
0.2 |
Max. Digging Depth (mm): |
4405 |
Max. Digging Radius (mm): |
5390 |
Max. Dumping Height (mm): |
3510 |
Max. Digging Force (kN): |
>56.1±10％ |
Engine Model: |
WD DEUTZ WP4G95E221 /Cummins 4BTA3.9-C110 |
Rated Output: |
70 (kW)@2200rpm /82 (kW)@2200rpm |
Name: |
Compact Backhoe Loader |
Model: |
WZC20 |
Length (with Bucket On Ground) (mm): |
5835 |
Width (mm): |
2240 |
Load Bucket Width (mm): |
2313 |
Height (To The Top Of The Cab) (mm): |
2720 |
Height (To The Top Of The Digging Pole) (mm): |
3548 |
Wheelbase (mm): |
2155.5 |
Min. Ground Clearance (mm): |
275 |
Rated Load (Kg): |
1700 |
Operating Weight: |
8000 |
Rated Digging Bucket Capacity (m3): |
1.0 |
Rated Digging Bucket Capacity (m3): |
0.2 |
Max. Digging Depth (mm): |
4405 |
Max. Digging Radius (mm): |
5390 |
Max. Dumping Height (mm): |
3510 |
Max. Digging Force (kN): |
>56.1±10％ |
Engine Model: |
WD DEUTZ WP4G95E221 /Cummins 4BTA3.9-C110 |
Rated Output: |
70 (kW)@2200rpm /82 (kW)@2200rpm |
Name: |
Compact Backhoe Loader |

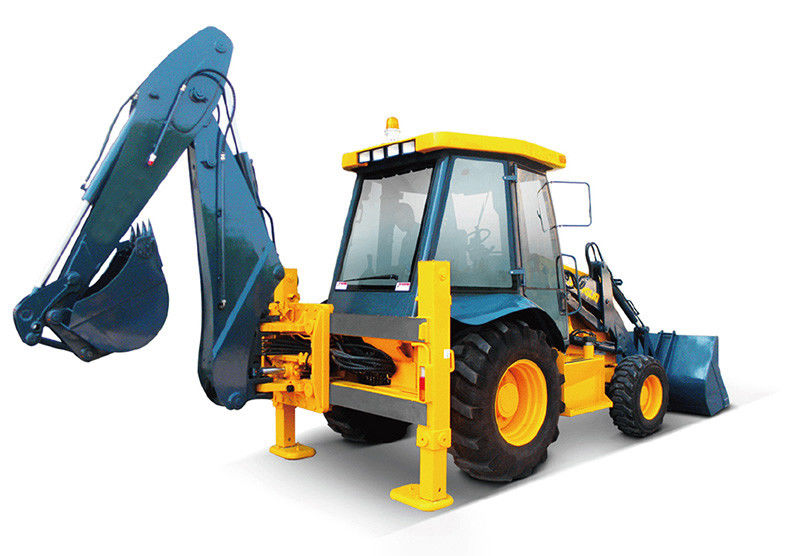

The backhoe loader has eight-bar-linkage design to improve loading performance with powerful bucket breakout force and high work stability. More importantly, the automatic bucket leveling system helps operator maintain high work efficiency.
Weichai or Cummins engine is adopted to deliver high digging force, superior performance, excellent energy-saving efficiency, low maintenance cost, outstanding reliability and durability.
Hydraulic system includes high quality hydraulic components from world's renowned brands to ensure reliable operation, and the additional hydraulic circuit allows to cope with the digging and loading works.
