Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: ZG065S
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD10000/unit
Packaging Details: Nude
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50 unit/momth
Model: |
ZG065S |
Operating Weight (kg): |
5960 |
Rated Bucket Capacity (m3): |
0.22 |
Overall Lenght (mm): |
5855 |
Overall Width (mm): |
1880 |
Overall Height (mm): |
2610 |
Max Gradeability (Degree): |
30 |
Max. Digging Radius (mm): |
6200 |
Max. Digging Depth (mm): |
3850 |
Max. Digging Height (mm): |
5785 |
Bucket Digging Force (kN): |
48 |
Engine Model: |
Kubota V2607T/WeiChai WP3.2 |
Rated Power: |
36/36.8 |
Model: |
ZG065S |
Operating Weight (kg): |
5960 |
Rated Bucket Capacity (m3): |
0.22 |
Overall Lenght (mm): |
5855 |
Overall Width (mm): |
1880 |
Overall Height (mm): |
2610 |
Max Gradeability (Degree): |
30 |
Max. Digging Radius (mm): |
6200 |
Max. Digging Depth (mm): |
3850 |
Max. Digging Height (mm): |
5785 |
Bucket Digging Force (kN): |
48 |
Engine Model: |
Kubota V2607T/WeiChai WP3.2 |
Rated Power: |
36/36.8 |

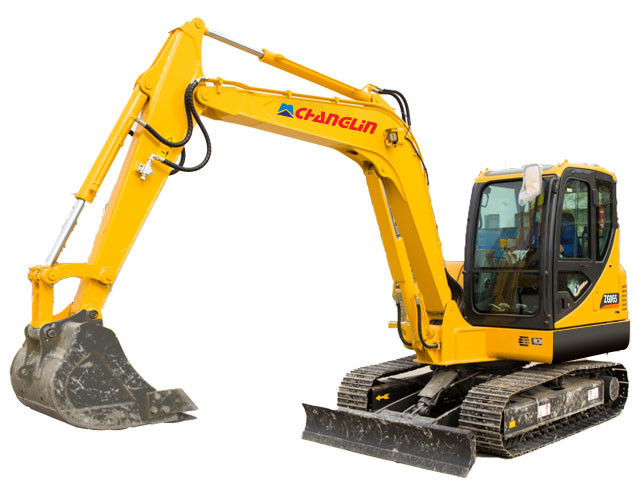

MINI EXCAVATOR ZG065S
ZG065S crawler excavator adopts imported engine that meets Class III emission regulations, which is powerful, durable and more energy-efficient. It has high working efficiency and outstanding cost performance.
FEATURES
Engine
Kubota/WEICHAI engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance, and the aluminum paralleling radiator features good heat dissipation performance.
The most spacious and comfortable driving space
The crawler excavator adopts an electro-mechanically integrated intelligent electronic control system with proprietary intellectual property rights. The multi-functional LCD display can realize the data acquisition and transmission, orientation, control, protection, and remote firmware upgrade and achieve high intelligent control.

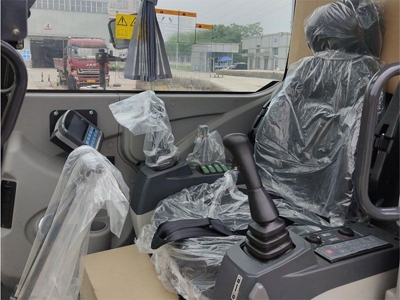

comfortable driving space
All-new cab comes with broader vision field and more reasonable space layout. The air-cushioned seats and the ergonomic control system realize simpler and more comfortable operations and minimize the driver’s fatigue.
Hardest chasiss of excavator
Equipped with highly reliable traveling mechanism and working device, the application of strength calculation, finite element analysis, and new structures and new materials for the structural parts significantly improves the reliability.
Relaibility hydraulic System
It features convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenances and reduces the maintenance costs.
FAQ
1. Why choose us?
CHANGLIN WEA is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7*24 after-sale services.
