Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: ZG027U
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD10000
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
ZG027U |
Operating Weight (Kg): |
2,600 |
Rated Bucket Capacity (m3): |
0.09 |
Overall Length (mm): |
4,110 |
Overall Width (mm): |
1,500 |
Overall Height (mm): |
2,490 |
Standard Track Shoe Width (mm): |
250 |
Travelling Speed (Km/hr): |
4.2/2.3 |
Swing Speed (rpm): |
10-12 |
Max. Gradeability (Degree): |
30 |
Maximum Digging Radius (mm): |
4520 |
Maximum Digging Depth (mm): |
2540 |
Maximum Digging Height (mm): |
4170 |
Bucket Digging Force (kN): |
23.1 |
Arm Digging Force (kN): |
14.4 |
Engine Model: |
Yanmar 3TNV76/ 3TNV80F |
Rated Power: |
14.5kW/2,400rpm 15.2kW/2,502rpm |
Model: |
ZG027U |
Operating Weight (Kg): |
2,600 |
Rated Bucket Capacity (m3): |
0.09 |
Overall Length (mm): |
4,110 |
Overall Width (mm): |
1,500 |
Overall Height (mm): |
2,490 |
Standard Track Shoe Width (mm): |
250 |
Travelling Speed (Km/hr): |
4.2/2.3 |
Swing Speed (rpm): |
10-12 |
Max. Gradeability (Degree): |
30 |
Maximum Digging Radius (mm): |
4520 |
Maximum Digging Depth (mm): |
2540 |
Maximum Digging Height (mm): |
4170 |
Bucket Digging Force (kN): |
23.1 |
Arm Digging Force (kN): |
14.4 |
Engine Model: |
Yanmar 3TNV76/ 3TNV80F |
Rated Power: |
14.5kW/2,400rpm 15.2kW/2,502rpm |

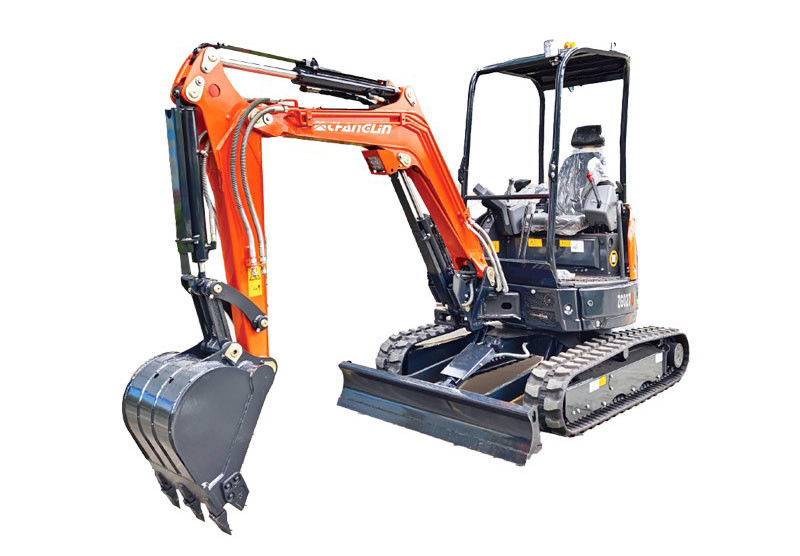

ZG027U is a true "zero tail swing" mini excavator with exceptional performance, making it ideal for working in tight spaces. Its user-friendly design ensures easy operation and hassle-free maintenance. Equipped with an EPA engine that meets Euro 5 emissions standards, it delivers powerful performance.
The true meaning of "zero tail swing" mini excavator
The ZG027U mini excavator boasts a "zero tail swing" design, allowing it to operate effectively in tight spaces. With a weight of only 2.7 tons and width of 1.5 meters, it has an international-style appearance. The turning radius of only 750mm ensures worry-free operation without exceeding the tracks.
The most trusted chassis
The ZG027U mini excavator boasts a chassis assembly with independent patented technology, providing a reliable and sturdy foundation for the machine's operation. The excavator's interchangeable steel and rubber tracks offer additional versatility and adaptability for various terrains and working conditions.
Maintenance within reachThe best handling performance of the same level of mini excavator
