Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: ZG035U
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
ZG035U |
Operating Weight (Kg): |
3,860 |
Rated Bucket Capacity (m3): |
0.12 |
Overall Length (mm): |
4,853 |
Overall Width (mm): |
1,800 |
Overall Height (mm): |
2,575 |
Standard Track Shoe Width (mm): |
300 |
Travelling Speed (Km/hr): |
3.1/4.8 |
Swing Speed (rpm): |
11-13 |
Max. Gradeability (Degree): |
35 |
Maximum Digging Radius (mm): |
5,557 |
Maximum Digging Depth (mm): |
3,170 |
Maximum Digging Height (mm): |
5,156 |
Bucket Digging Force (kN): |
32.67 |
Arm Digging Force (kN): |
25.78 |
Engine Model: |
Yanmar 3TNV88F |
Rated Power: |
18.2kW/2,200rpm |
Model: |
ZG035U |
Operating Weight (Kg): |
3,860 |
Rated Bucket Capacity (m3): |
0.12 |
Overall Length (mm): |
4,853 |
Overall Width (mm): |
1,800 |
Overall Height (mm): |
2,575 |
Standard Track Shoe Width (mm): |
300 |
Travelling Speed (Km/hr): |
3.1/4.8 |
Swing Speed (rpm): |
11-13 |
Max. Gradeability (Degree): |
35 |
Maximum Digging Radius (mm): |
5,557 |
Maximum Digging Depth (mm): |
3,170 |
Maximum Digging Height (mm): |
5,156 |
Bucket Digging Force (kN): |
32.67 |
Arm Digging Force (kN): |
25.78 |
Engine Model: |
Yanmar 3TNV88F |
Rated Power: |
18.2kW/2,200rpm |

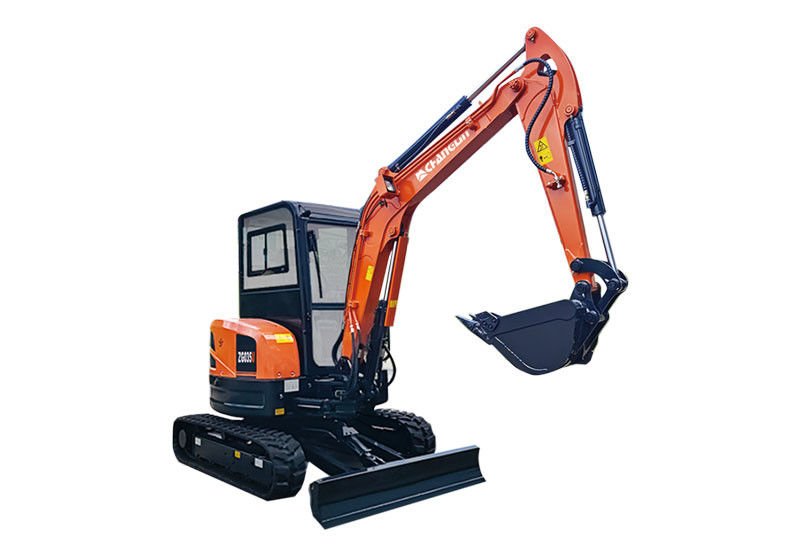

The ZG035U is equipped with a high-power Yanmar engine that meets Euro 5/Tier4F emission standards. It boasts coordinated movements, fast response, strong power, efficient operation, and energy-saving capabilities.
Cab + large air conditioner for cooling and heating
This model is equipped with a reversible cab for easy maintenance.
Strong power
The Yanmar imported high-power engine of the ZG020U mini excavator is a perfect match for its load-sensitive system. Its biggest feature is its coordinated movements, fast response, efficient operation, and energy-saving capabilities. Additionally, it meets the National 4, Euro V, and Tier4F emissions standards, making it an eco-friendly choice for construction sites.
Attachment customization
Special customization
Color customization
