Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN/SINOMACH
Model Number: GYA4200
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd30000/unit-usd45000/unit
Packaging Details: in container or 40FR
Delivery Time: 20 working days
Supply Ability: 1500 units per year
Name: |
Asphalt Crawler Paver |
Model: |
GYA4200 |
Model GYA4200 Length×Width×Height (mm):: |
5500×2050×3415 |
Total Weight (kg):: |
10500 |
Engine: |
Cummins QSB 3.9-C125 |
Rated Output (kw): |
93 |
Basic Paving Width (mm): |
1800 |
Max. Paving Width (mm): |
4200 |
Max. Paving Thickness (mm): |
200 |
Travelling Type: |
Crawler |
Travelling Speed (km/h): |
0-4.5 |
Paving Speed (m/min): |
0-20 |
Hoper Capacity (t): |
8 |
Name: |
Asphalt Crawler Paver |
Model: |
GYA4200 |
Model GYA4200 Length×Width×Height (mm):: |
5500×2050×3415 |
Total Weight (kg):: |
10500 |
Engine: |
Cummins QSB 3.9-C125 |
Rated Output (kw): |
93 |
Basic Paving Width (mm): |
1800 |
Max. Paving Width (mm): |
4200 |
Max. Paving Thickness (mm): |
200 |
Travelling Type: |
Crawler |
Travelling Speed (km/h): |
0-4.5 |
Paving Speed (m/min): |
0-20 |
Hoper Capacity (t): |
8 |

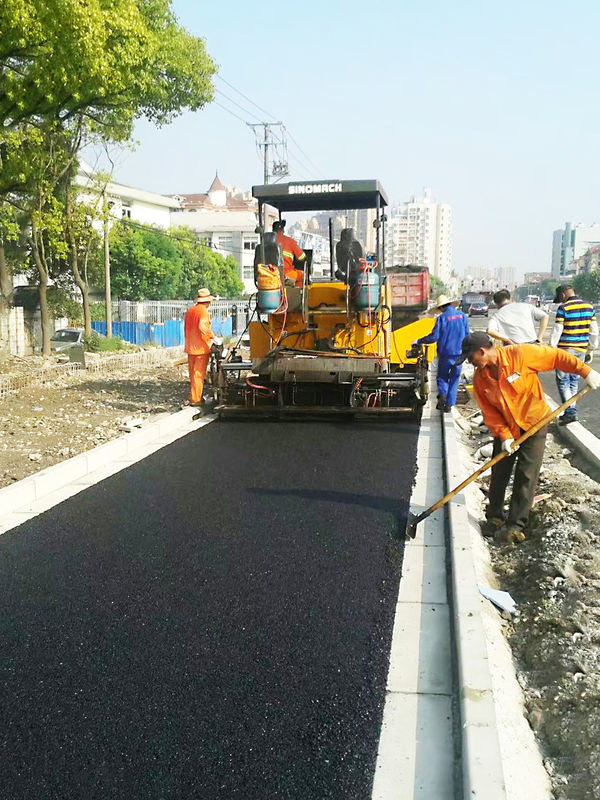

Sinomach Changlin Road Construction Equipment And Tools GYA4200 Road Paver Good Price
1. Pavers are widely used, convenient for quick transition, strong maneuverability and high work efficiency.
![]()
2.Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
3.Equipped with full hydraulic automatic telescopic screed, paving width stepless adjustable.
![]()
4.The travel drive system adopts the imported hydraulic piston pump, planetary reducer and plunger motor, which has high reliability; the closed control controls the left and right independent drive modes to ensure stable running of the track drive system, flexible steering and convenient transition.
![]()
5.Optional all-wheel drive model provides greater traction for heavy duty and softer roadbed conditions.Driving tire drive, the paving speed adopts constant speed automatic control technology.
![]()
6.External multi-point propane gas heating device, reliable ignition, fast heating speed and uniform heat distribution, and automatic flame-off function for flameout, improving safety of use.
7.Micro-computerized control is easy and convenient, closed cycle design is much more stable and practical.humanized control panel design makes your operation more easy and comfortable.
