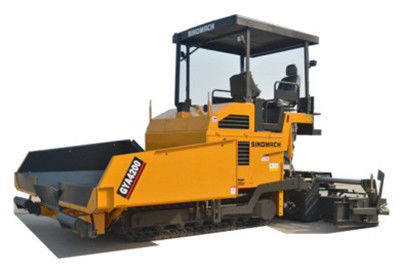

All In One Asphalt Paving Machine GYA4200 Crawler Paver In Road Construction

Product Details

Place of Origin: CHINA

Brand Name: changlin

Model Number: GYA4200

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5000-USD100000

Payment Terms: L/C, T/T

Supply Ability: 30units/per month

Get Best Price
Contact Now
Specifications
Highlight:

All In One Asphalt Paving Machine GYA4200

,

Crawler Paver In Road Construction

Model:
GYA4200
Length×Width×Height (mm)::
5500×2050×3415
Total Weight (kg)::
10500
Engine Cummins:
QSB 3.9-C125
Rated Output (kw):
93
Basic Paving Width (mm):
1800
Max. Paving Width (mm):
4200
Max. Paving Thickness (mm):
200
Travelling Type:
Crawler
Travelling Speed (km/h):
0-4.5
Paving Speed (m/min):
0-20
Hoper Capacity (t):
8
Model:
GYA4200
Length×Width×Height (mm)::
5500×2050×3415
Total Weight (kg)::
10500
Engine Cummins:
QSB 3.9-C125
Rated Output (kw):
93
Basic Paving Width (mm):
1800
Max. Paving Width (mm):
4200
Max. Paving Thickness (mm):
200
Travelling Type:
Crawler
Travelling Speed (km/h):
0-4.5
Paving Speed (m/min):
0-20
Hoper Capacity (t):
8
Description
All In One Asphalt Paving Machine GYA4200 Crawler Paver In Road Construction
  • ASPHALT PAVER GYA4200
  • External multi-point propane gas heating device, reliable ignition, fast heating speed and uniform heat distribution, and automatic flame-off function for flameout, improving safety of use.



  • All In One Asphalt Paving Machine GYA4200 Crawler Paver In Road Construction 0Dongfeng Cummins EFI engine is adopted for its strong power, high reliability, and excellent start-up performance at low temperatures.



















All In One Asphalt Paving Machine GYA4200 Crawler Paver In Road Construction 1

The micro-computer control is utilized for dependable operation, and the ergonomic design of control panel makes the operation more simple.





















All In One Asphalt Paving Machine GYA4200 Crawler Paver In Road Construction 2

The travel system adopts imported hydraulic piston pump, planetary gear reducer and piston motor, ensuring high reliability. The closed control console allows the paver to be independently controlled from the left or right side, thus ensuring the stable travelling and smooth steering.

The travel system adopts imported hydraulic piston pump, planetary gear reducer and piston motor, ensuring high reliability. The closed control console allows the paver to be independently controlled from the left or right side, thus ensuring the stable travelling and smooth steering















All In One Asphalt Paving Machine GYA4200 Crawler Paver In Road Construction 3The travel system adopts imported hydraulic piston pump, planetary gear reducer and piston motor, ensuring high reliability. The closed control console allows the paver to be independently controlled from the left or right side, thus ensuring the stable travelling and smooth steering.







All In One Asphalt Paving Machine GYA4200 Crawler Paver In Road Construction 4

The asphalt paver has extensive applications requiring asphalt paving tasks, offering better maneuverability, high work efficiency, quick and easy transportation between jobsites.
