Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: YD160
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD20000-USD40000
Packaging Details: Nude
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 90 set/momth
Model: |
YD160 |
Power Type: |
Diesel |
Engine Model: |
WD10G178E25 |
Dimension(L×W×H): |
4990*3440*3110（mm） |
Operating Weight: |
16.4Ton |
Engine Rated Power: |
131KW |
Engine Rated Speed: |
1850r/min |
Engine Max Torque: |
830/1000-1200N.m/rpm |
Ground Pressure: |
0.067 MPa |
Track Gauge: |
1880mm |
Dozing Capacity: |
4.55m3 |
Bulldozer Shovel: |
2935*960mm |
Model: |
YD160 |
Power Type: |
Diesel |
Engine Model: |
WD10G178E25 |
Dimension(L×W×H): |
4990*3440*3110（mm） |
Operating Weight: |
16.4Ton |
Engine Rated Power: |
131KW |
Engine Rated Speed: |
1850r/min |
Engine Max Torque: |
830/1000-1200N.m/rpm |
Ground Pressure: |
0.067 MPa |
Track Gauge: |
1880mm |
Dozing Capacity: |
4.55m3 |
Bulldozer Shovel: |
2935*960mm |

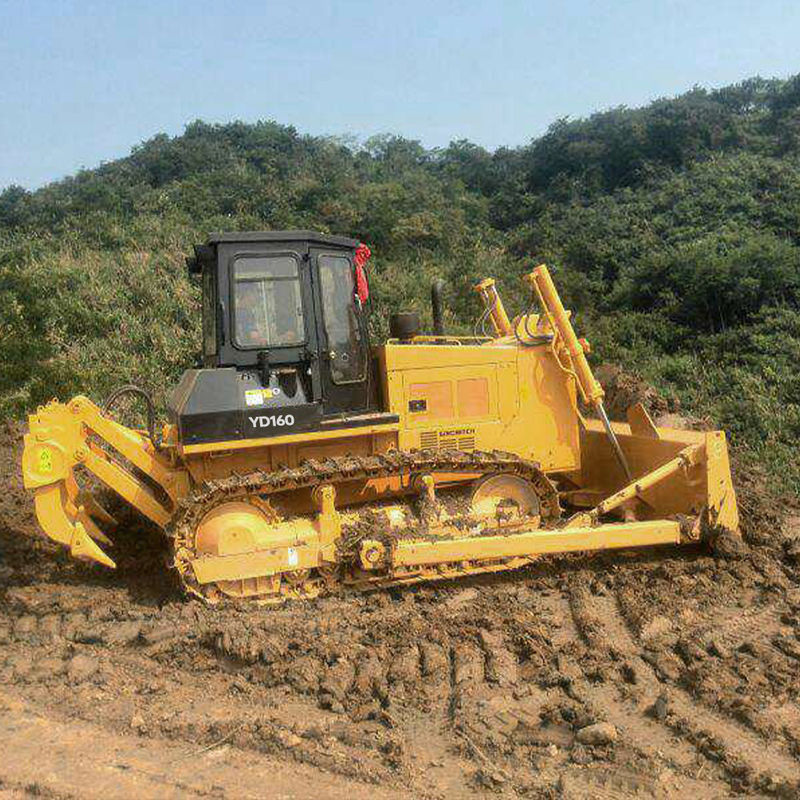

SINOMACH Changlin YD160 Engine Power 131KW 16.4 Ton 4.55m3 Dozing Capacity Hydraulic Crawler Bulldozer
YD160 Crawler Bulldozer
| Operating weight | 16400KG |
| Displacement | 9.726L |
| Engine model | Weichai WD10G178E25 |
| Engine rated power/speed | 131KW/1850r/min |
| Ground pressure | 0.067MPa |
| Engine max torque | 830/1000-1200N.m/rpm |
| Track gauge | 1880mm |
| Dozing capacity |
4.55m3 |
| Blade width | 3440mm |
| Blade height | 1135mm |
| Track shoe width | 510mm |
| Pitch |
203.2mm |
| Grade ability | 30° |
| Max tractor force | 146KN |
| Quantity of Track rollers | 12(8 Double+4 Single) |
FEATURES
1. Cabin Adopt the luxury cab, wider driving vision, more beautiful shape,overhead air-conditioning system,comfortable operating space.
2.GTY16 series bulldozer central transmission assembly is a transmission mechanism between the gearbox and the final transmission, its role is to change the transmission torque and transmission direction of the power system, and the power is transferred to the steering clutch to the final transmission gear, to achieve the bulldozer walking, steering and braking functions. The structure has the characteristics of shifting, smooth transmission and high mechanical efficiency.
3.Under the premise of fully considering the heat dissipation requirements, the front hood and the side rear cover adopt the semi-sealed structure of a long hole grid to facilitate the overall protection of the engine, the suction is smoother, the heat dissipation effect is better, and the noise is greatly reduced.
4. Bulldozer wire harness assembly adopts advanced electrical system design concept, first-class process equipment, to ensure that the line, crimping, assembly, power detection of all aspects of quality control, the manufacturing process strictly implement TS16949 quality system standards, for the reliable operation of the vehicle electrical system to provide a solid guarantee.
5.As the final drive chain rail of the force parts, the tooth block structure strength, wear resistance, service life are very high requirements, Haitui tooth block series products using high-quality alloy steel, advanced forging, die quenching process, to ensure better than the market of similar products good performance.
FAQ
1.Why Choose Us?
CHANGLIN WEA Is Committed To Offer Not Only Products With High Quality And Performance And Competitive
Price, But Also In-Time Delivery And Comprehensive 7*24 After-Sale Services.
