Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: WZC20
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd25000/unit-usd35000/unit
Packaging Details: by container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 units per year
Model: |
WZC20 |
Length(with Bucket On Ground) (mm): |
5835 |
Width (mm): |
2240 |
Height(To The Top Of The Cab) (mm): |
2720 |
Wheel Base (mm): |
2155 |
Min. Ground Clearance (mm): |
275 |
Rated Load (Kg): |
1700 |
Operating Weight: |
8000 |
Rated Bucket Capacity (m3): |
1.0 |
Max. Dump Clearance (mm): |
2714 |
Dump Reach (mm): |
845 |
Max Lifting Capability (Kg): |
3400 |
Max. Load Breakout Force （kN）: |
>60 |
Rated Digging Bucket Capacity (m3): |
0.3 |
Engine Model: |
WD DEUTZ WP4G95E221 /Cummins 4BTA3.9-C110 |
Rated Output: |
70 (kW)@2200rpm /82 (kW)@2200rpm |
Displaement: |
4.5(L) /3.9(L) |
Name: |
Backhoe Loader |
Model: |
WZC20 |
Length(with Bucket On Ground) (mm): |
5835 |
Width (mm): |
2240 |
Height(To The Top Of The Cab) (mm): |
2720 |
Wheel Base (mm): |
2155 |
Min. Ground Clearance (mm): |
275 |
Rated Load (Kg): |
1700 |
Operating Weight: |
8000 |
Rated Bucket Capacity (m3): |
1.0 |
Max. Dump Clearance (mm): |
2714 |
Dump Reach (mm): |
845 |
Max Lifting Capability (Kg): |
3400 |
Max. Load Breakout Force （kN）: |
>60 |
Rated Digging Bucket Capacity (m3): |
0.3 |
Engine Model: |
WD DEUTZ WP4G95E221 /Cummins 4BTA3.9-C110 |
Rated Output: |
70 (kW)@2200rpm /82 (kW)@2200rpm |
Displaement: |
4.5(L) /3.9(L) |
Name: |
Backhoe Loader |

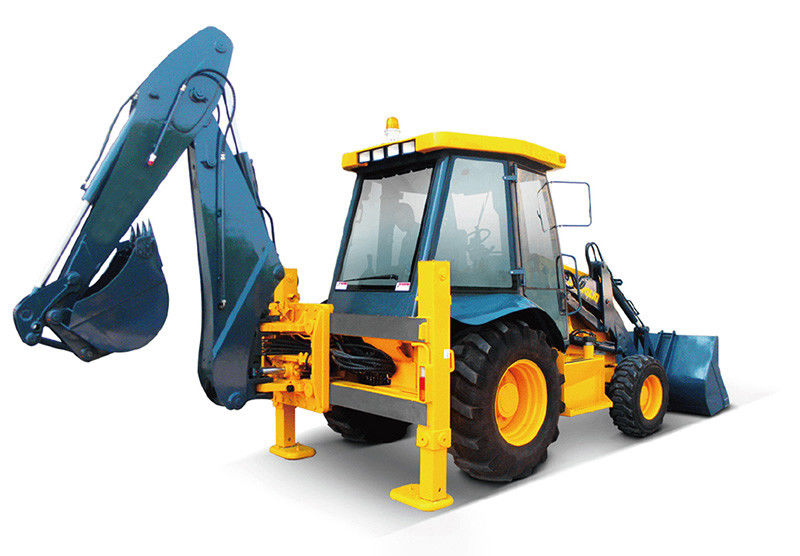

Top Brand not used second Sinomach Changlin mini backhoe Loader WZC20 bucket 1.0 m3 digger bucket 0.3 m3 like Catepillar
· Utilizing Weichai or Cummins engine, delivering high digging force, superior performance, excellent energy-saving efficiency, low maintenance cost, outstanding reliability and durability.
· Hydraulic system includes high quality hydraulic components from world's renowned brands to ensure reliable operation, and the additional hydraulic circuit allows to cope with the digging and loading works.
· Maintenance-free wet brake system has dual brake pedals, which ensure smooth braking in limited spaces and tight corners.
· The backhoe loader has eight-bar-linkage design to improve loading performance with powerful bucket breakout force and high work stability. More importantly, the automatic bucket leveling system helps operator maintain high work efficiency.
· More backhoe loader attachments are available for customers to choose from.
· FOPS/ROPS certified spacious cab provides excellent operator visibility.
1．Weichai or Cummins engine, powerful, energy efficient, reliable and durable and Cheaper maintenance
2．Hydraulic system comes with world famous brand elements and additional hydraulic circuit for the loading and digging system to sure comfortable operation, high operating efficiency, excellent cost performance
3．Equipped with maintenance-free wet brake system. Dual brake pedals to sure brake one side accurate brake and brake at original point especial being used at limited space.
4．Equipped with forward rotation eight-bar linkage loading device to sure high unloading large break force and more smooth and steady of the bucket during the work. More advantage it comes with bucket ground automatic leveling system to sure the high work efficiency.
FAQ
1.Why choose us?
CHANGLIN WEA is committed to offer not only products with high quality and performance and competitive
price, but also in-time delivery and comprehensive 7*24 after-sale services.
