Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: GTY220
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD20000-29999
Packaging Details: Nude
Delivery Time: 7-14 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30set/momth
Model: |
GTY220 |
Displacement (L): |
14.01 |
Rated Power(kw/rpm): |
1375/1800 |
Max.torque (N.m/rpm): |
1030/1250 |
Operation Weight: |
23.5T |
Dimension (no Ripper) (mm): |
5390*3735*3350 |
Ground Pressure (MPa): |
0.077 |
Track Gauge (mm): |
2000 |
Dozing Capacity(m³): |
6.4 |
Blade Width (mm): |
3735 |
Blade Height (mm): |
1310 |
Max.drop Below Ground (mm): |
540 |
Track Shoe Width (mm): |
560 |
Pitch (mm): |
216 |
Model: |
GTY220 |
Displacement (L): |
14.01 |
Rated Power(kw/rpm): |
1375/1800 |
Max.torque (N.m/rpm): |
1030/1250 |
Operation Weight: |
23.5T |
Dimension (no Ripper) (mm): |
5390*3735*3350 |
Ground Pressure (MPa): |
0.077 |
Track Gauge (mm): |
2000 |
Dozing Capacity(m³): |
6.4 |
Blade Width (mm): |
3735 |
Blade Height (mm): |
1310 |
Max.drop Below Ground (mm): |
540 |
Track Shoe Width (mm): |
560 |
Pitch (mm): |
216 |

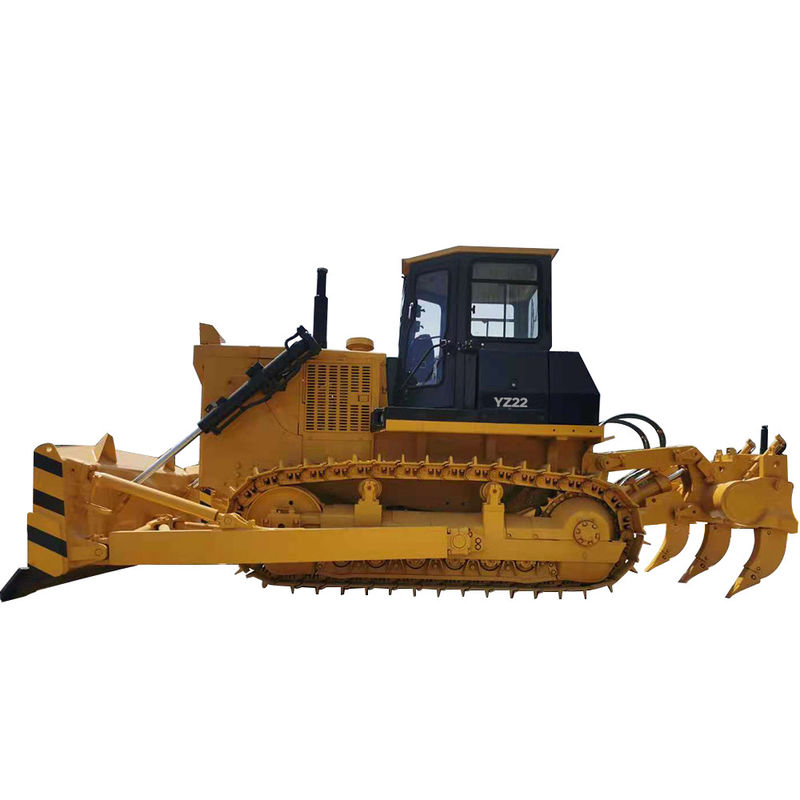

BULLDOZER GTY220
The GTY220 bulldozer is versatile construction equipment used for pushing, digging, excavating and leveling materials such as soil at roads, railways, mines, airports, and other jobsites. It is crucial piece of heavy equipment for construction projects in fields of national defense, mining, urban/rural roads and water conservancy.
FEATURES
1.Engine side cover facilitates maintenance access, and a handle is added for operator's safety during the repairing process.
2.The bulldozer is designed with a new cab, giving a superior look and increased visibility.
3.The ergonomic cab design enables increased interior space, easy-to-use joystick controls keep the operator more comfortable and make work easier and more precise with less labor intensity. The use of adjustable seat, improved steering and vibration-damping floor efficiently minimizes the vibration transmitted into cab under severe working conditions, thus further improving operator's comfort.
4.Engine side cover facilitates maintenance access, and a handle is added for operator's safety during the repairing process.
5.The bulldozer is designed with a new cab, giving a superior look and increased visibility.
