Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: ZG020U
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD10000
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
ZG020U |
Operating Weight (Kg): |
2,000 |
Rated Bucket Capacity (m3): |
0.05 |
Overall Length (mm): |
3,750 |
Overall Width (mm): |
1,080 |
Overall Height (mm): |
2,365 |
Standard Track Shoe Width (mm): |
230 |
Travelling Speed (Km/hr): |
2/4 |
Swing Speed (rpm): |
11 |
Max. Gradeability (Degree): |
30 |
Maximum Digging Radius (mm): |
4,125 |
Maximum Digging Depth (mm): |
2,300 |
Maximum Digging Height (mm): |
3,615 |
Bucket Digging Force (kN): |
17.2 |
Arm Digging Force (kN): |
9.5 |
Engine Model: |
Yanmar 3TNV76/ 3TNV80F |
Rated Power: |
14.5kW/2,400rpm 15.2kW/2,500rpm |
Model: |
ZG020U |
Operating Weight (Kg): |
2,000 |
Rated Bucket Capacity (m3): |
0.05 |
Overall Length (mm): |
3,750 |
Overall Width (mm): |
1,080 |
Overall Height (mm): |
2,365 |
Standard Track Shoe Width (mm): |
230 |
Travelling Speed (Km/hr): |
2/4 |
Swing Speed (rpm): |
11 |
Max. Gradeability (Degree): |
30 |
Maximum Digging Radius (mm): |
4,125 |
Maximum Digging Depth (mm): |
2,300 |
Maximum Digging Height (mm): |
3,615 |
Bucket Digging Force (kN): |
17.2 |
Arm Digging Force (kN): |
9.5 |
Engine Model: |
Yanmar 3TNV76/ 3TNV80F |
Rated Power: |
14.5kW/2,400rpm 15.2kW/2,500rpm |

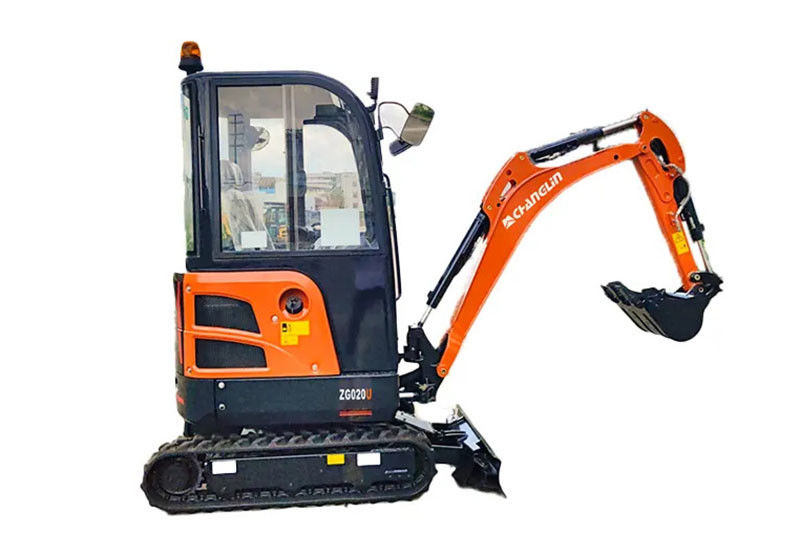

This ZG020U model is the smallest mini excavator with a cab, featuring a powerful Yanmar engine that meets Euro 5 and T4 emissions standards. It boasts fast and coordinated movements, as well as efficient operation.
Minimum micro excavation for cab driving
ZG018U and ZG020U share the same platform and interchangeable driving shed and cab.
Equipped with heating and large air conditioning, with an electric fan (no cold air)
Configured with 2 working lights and 1 alarm light for added safety
Features a sleek exterior and stylish interior design
Strong power
The Yanmar imported high-power engine of the ZG020U mini excavator is a perfect match for its load-sensitive system. Its biggest feature is its coordinated movements, fast response, efficient operation, and energy-saving capabilities. Additionally, it meets the National 4, Euro V, and Tier4F emissions standards, making it an eco-friendly choice for construction sites.
The most spacious and comfortable driving space
The ZG020U mini excavator offers an ergonomic sitting posture, ensuring comfort and ease of operation for the operator's hands, feet, back, and sitting posture. It also features an aluminum alloy folding large foot pedal and a large LCD display for easy operation. The excavator's interchangeable shock-absorbing seats provide additional comfort during long work hours. Additionally, users can choose between steel or rubber tracks for added versatility on various terrains.
