Product Details
Place of Origin: China
Brand Name: Changlin
Certification: Provided
Model Number: T120N-3
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD15000-USD25000
Packaging Details: Nude
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 90 set/momth
Model: |
T120N-3 |
Power Type: |
Diesel |
Engine Model: |
LR6A3-23 |
Dimension(L×W×H): |
4190*3240*3060（mm） |
Operating Weight(Standard): |
95KN |
Engine Rated Power: |
81KW |
Engine Rated Speed: |
2300r/min |
Engine Max Torque: |
400N.m |
Total Weight: |
10400KG |
Track Board Width: |
450mm |
Land Pressure: |
54.4Kpa |
Bulldozer Shovel: |
2935*960mm |
Name: |
Crawler Bulldozer |
Model: |
T120N-3 |
Power Type: |
Diesel |
Engine Model: |
LR6A3-23 |
Dimension(L×W×H): |
4190*3240*3060（mm） |
Operating Weight(Standard): |
95KN |
Engine Rated Power: |
81KW |
Engine Rated Speed: |
2300r/min |
Engine Max Torque: |
400N.m |
Total Weight: |
10400KG |
Track Board Width: |
450mm |
Land Pressure: |
54.4Kpa |
Bulldozer Shovel: |
2935*960mm |
Name: |
Crawler Bulldozer |

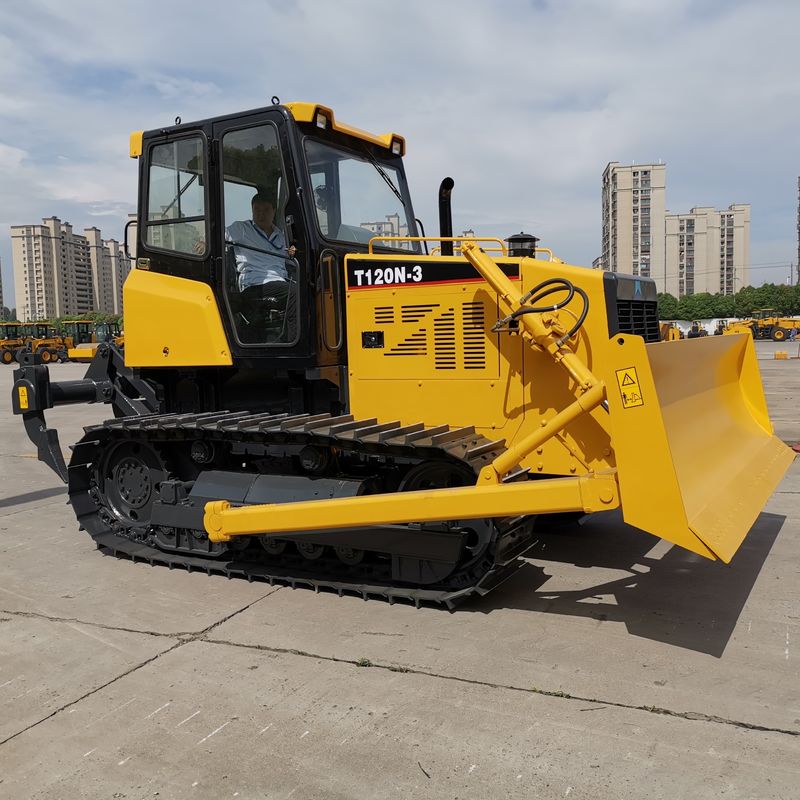

T120N-3 Crawler Bulldozer
| Total weight | 10400KG |
| Max towing force | 95kN |
| Engine model | LR6A3-23 |
| Engine rated power/speed | 81KW/2300r/min |
| Fuel consumption of the engine | ≤242g/kw.h |
| Engine max torque | 400N.m |
| Forward 1-4gear | 2.6-10.4km/h |
| Reverse 1-2 gear | 3.7-6.7km/h |
| Track board width | 450mm |
| Land pressure | 54.4kPa |
| Overall dimension | 4190*3240*3060mm |
| Bulldozer shovel | 2935*960mm |
| Blade max lifting height | 830mm |
| Blade max digging depth | 350mm |
| Towing equipment/Scarifier(Optional) | Stationary type/three tooth |
FEATURES
1.Engine Choose the engine produced with British Ricardo joint-veture technology,which confirms to National II emission standard ,and features low noise,large torque,energy efficient and environmental friendliness.
2.Main Clutch Choose dry,multi-disk and constant combining clutch which features big torque reserve and high reliability
3. Gearbox Choose 4F+2R mechanical gear-shifting gearbox,simply operating,conveniently maintaining,reliably using
4.Steering clutch Choose dry and multi-disk turning clutch,manually operating with hydraulically-assisted,easily maintaining,lightly and conveniently operating.
5. Cabin Adopt the luxury cab,overhead air-conditioning system,comfortable operating space.
