CPCD80 Diesel Fork Lift Truck 8 Ton RG16 Long Wheelbase Design

Name: CPCD80 Diesel Fork Lift Truck 8 Ton RG16 Long Wheelbase Design
Brand: CHANGLIN WEA CO., LTD
SKU: CPCD80
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: changlin

Model Number: CPCD80

Payment & Shipping Terms

Minimum Order Quantity: 1

Delivery Time: 5-8work days

Payment Terms: L/C, T/T

Supply Ability: 30units/per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    CPCD80 Diesel Fork Lift Truck, Diesel Fork Lift Truck 8 Ton, Diesel Fork Truck RG16


Basic Model:	CPCD80	Type:	RG16
Power Type:	Diesel	Rated Load Kg:	8000
Load Center Distance Mm:	600	Lifting Height Mm:	3000
Free Lift Height Mm:	200	Fork Size L×W×T Mm:	1500×160×75
Fork Spacing (Outside) Min./Max. Mm:	440×1950	Fork Overhang (Wheel Center To Fork Surface) Mm:	705
Engine Model:	CY6102BG	Rated Output/rpm KW:	81/2500
Rated Torque/rpm N.m:	353/1700	Name:	Diesel Fork Lift Truck

Basic Model:	CPCD80
Type:	RG16
Power Type:	Diesel
Rated Load Kg:	8000
Load Center Distance Mm:	600
Lifting Height Mm:	3000
Free Lift Height Mm:	200
Fork Size L×W×T Mm:	1500×160×75
Fork Spacing (Outside) Min./Max. Mm:	440×1950
Fork Overhang (Wheel Center To Fork Surface) Mm:	705
Engine Model:	CY6102BG
Rated Output/rpm KW:	81/2500
Rated Torque/rpm N.m:	353/1700
Name:	Diesel Fork Lift Truck

Description

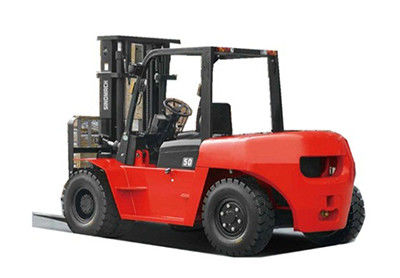

CPCD80 Diesel Fork Lift Truck 8 Ton RG16 Long Wheelbase Design

DIESEL FORKLIFTCPCD80

The CPCD80 series forklift comes with the latest appearance design. It has a great line, dynamic and stylish appearance.

Long wheelbase design ensures higher longitudinal stability and higher lifting capacity. Load on the real axle is reduced, extending the service life of steering wheel.

Japanese OKAMURA, NISSAN and Chinese HC transmissions are optional for the lift truck. They come with best in class structure and reliable performance. The OKAMURA type transmission features floating structure, ensuring a completely flexible connection between engine and forklift frame, thus minimizing machine vibration.

Thanks to a large sized injection molded covering part, the forklift truck looks more elegant and user friendly.

Due to the reduction of machine size, our diesel forklift has smaller turning radius and narrows the passage for right angle stacking, thus considerably improving warehouse use ratio and providing suitability for use in containers.

1. Bespoke lifting height available.
2. This range of material handling equipment can be provided with attachment.
3. Data in the table is for standard model only. For further information, please contact us.
4. All specifications are subject to change without prior notice.
