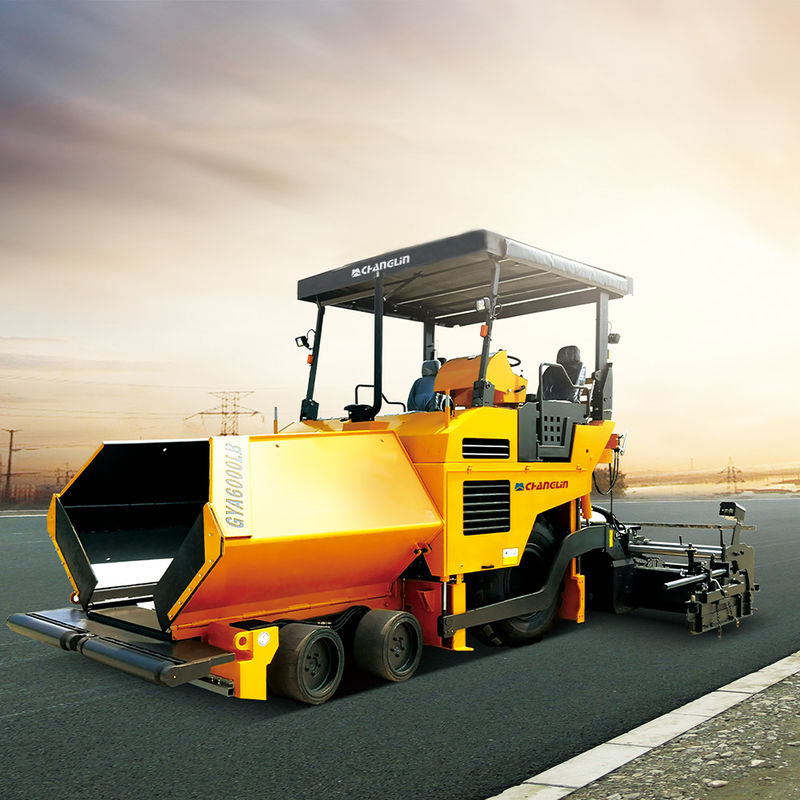

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW

Name: Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW
Brand: CHANGLIN WEA CO., LTD
SKU: GYA6000LB
Price: 30,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Changlin

Certification: Provided

Model Number: GYA6000LB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD20000-40000

Packaging Details: Nude

Delivery Time: 7-14 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 set/momth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Hydraulic Asphalt Paver Equipment, Asphalt Paver Equipment GYA6000LB, Asphalt Paving Equipment 17 Ton


Model:	GYA6000LB	LengthWidthHeight(mm):	629026903650
Total Weight(kg):	17000	Engine:	Cummins QSB 3.9-C125
Rated Output(kw):	93	Basic Paving Width(mm):	2500
Max.paving Width(mm):	6000	Max.paving Thickness(mm):	150
Travelling Type:	Four-wheel Drive	Travelling Speed(km/h):	0-11
Paving Speed(m/min):	0-11	Hopper Capacity(t):	12
Name:	Asphalt Paver Equipment

Model:	GYA6000LB
LengthWidthHeight(mm):	629026903650
Total Weight(kg):	17000
Engine:	Cummins QSB 3.9-C125
Rated Output(kw):	93
Basic Paving Width(mm):	2500
Max.paving Width(mm):	6000
Max.paving Thickness(mm):	150
Travelling Type:	Four-wheel Drive
Travelling Speed(km/h):	0-11
Paving Speed(m/min):	0-11
Hopper Capacity(t):	12
Name:	Asphalt Paver Equipment

Description

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW

SINOMACH CHANGLIN GYA6000LB 17 Ton Paving Width 2.5-6m 93KW Hydraulic Asphalt Paver

ASPHALT PAVER GYA600LB

Wheel type pavers are widely used,convenient for quick transition,strong maneuverability and high work efficiently.

Traveling type	Four-wheel drive
Basic paving width	2.5m
Max. paving width	6m
Max. paving thickness	150mm
Working Speed	0-11m/min
Traveling speed	0-11km/h
Hopper capacity	12 t
Engine Manufacturer	Dongfeng Cummins
Engine Model	QSB3.9-C125
Fuel tank capacity	116L
Rated power	93KW
Rated speed	2200rpm
Electric system	24V
Emission	State Ⅲ
Telescopic range	2.5-4.5m
Compaction type	Single
Compaction frequency	25HZ
Compaction amplitude	5mm
Vibration frequency	40HZ
Transport height	3000mm

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW 0

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW 1

FEATURES

1.Engine

Dongfeng Cummins engine is adopted for its strong power, high reliability, and excellent start-up performance at low temperatures.

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW 2

2. Equipped with full hydraulic automatic telescopic screed, paving width stepless adjustable.

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW 3

3.The travel drive system adopts the imported hydraulic piston pump, planetary reducer and plunger motor, which has high reliability; the closed control controls the left and right independent drive modes to ensure stable running of the track drive system, flexible steering and convenient transition.

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW 4

4. Micro-computerized control is easy and convenient, closed cycle design is much more stable and practical.humanized control panel design makes your operation more easy and comfortable.

Hydraulic Asphalt Paver Equipment GYA6000LB 17 Ton Paving Width 2.5-6m 93KW 5
