Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: ZG150
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd23500/unit-usd29000/unit
Packaging Details: in container or 40FR
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 units per year
Operating Weight: |
13890kg |
Rated Bucket Capacity: |
0.6 M3 |
Overall Length: |
7762mm |
Overall Width（Standard Track Shoe）: |
2510mm |
Overall Height: |
2983mm |
Groundclearance Of Counterweight: |
915 |
Min. Ground Clearance: |
416mm |
Standard Track Shoe Width: |
500mm |
Max. Traction: |
122KN |
Travelling Speed (H/L): |
5.9/3.4Km/hr |
Swing Speed: |
13rpm |
Maximum Digging Radius: |
8335mm |
Ground Maximum Digging Radius: |
8203mm |
Maximum Digging Depth: |
5491mm |
Ground Maximum Digging Depth: |
5288mm |
Maximum Vertical Digging Depth: |
4826mm |
Maximum Digging Height: |
8679mm |
Maximum Dumping Height: |
6174mm |
Bucket Digging Force: |
100KN |
Engine Model: |
Cummins QSF3.8 |
Displacement: |
3.76L |
Emission: |
Tier III |
Rated Power: |
86kw |
Max. Torque: |
470N.m@1400rpm |
Operating Weight: |
13890kg |
Rated Bucket Capacity: |
0.6 M3 |
Overall Length: |
7762mm |
Overall Width（Standard Track Shoe）: |
2510mm |
Overall Height: |
2983mm |
Groundclearance Of Counterweight: |
915 |
Min. Ground Clearance: |
416mm |
Standard Track Shoe Width: |
500mm |
Max. Traction: |
122KN |
Travelling Speed (H/L): |
5.9/3.4Km/hr |
Swing Speed: |
13rpm |
Maximum Digging Radius: |
8335mm |
Ground Maximum Digging Radius: |
8203mm |
Maximum Digging Depth: |
5491mm |
Ground Maximum Digging Depth: |
5288mm |
Maximum Vertical Digging Depth: |
4826mm |
Maximum Digging Height: |
8679mm |
Maximum Dumping Height: |
6174mm |
Bucket Digging Force: |
100KN |
Engine Model: |
Cummins QSF3.8 |
Displacement: |
3.76L |
Emission: |
Tier III |
Rated Power: |
86kw |
Max. Torque: |
470N.m@1400rpm |

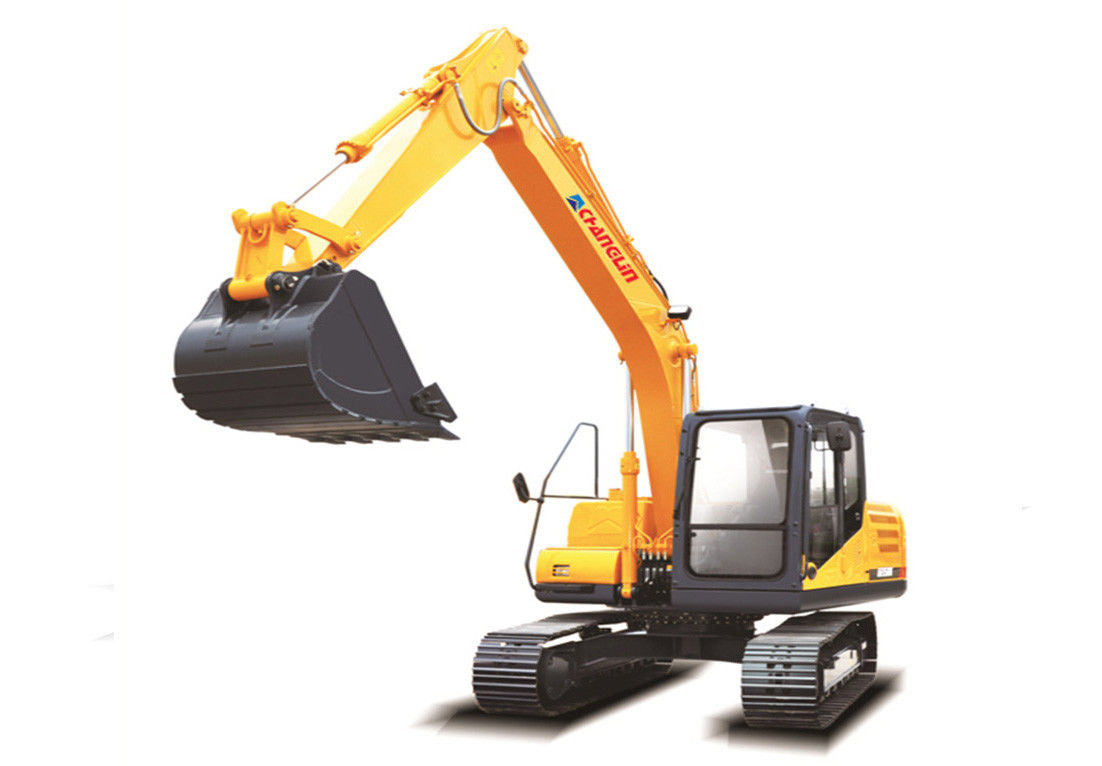

ZG150 Crawler excavator
CHANGLIN ZG150 Fixed Cummins EFI engine (conforming to Ⅲ-stage emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance.
一,Cummins' new generation of high-power EFI engines with strong power, low fuel consumption and high reliability
二•New hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and easier operation
三,•Equipped with large-caliber cylinders, optimizing the arrangement of each key hinge point, improving the digging force of the whole machine, setting the automatic supercharging function, and automatically increasing the digging force as the load increases
四,•New generation control system intelligently adjusts the hydraulic absorption power according to the working conditions, and optimizes the system matching to ensure the full performance of the whole machine.
五,Equipped with high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions
六,Safe and reliable new cab with automatic air conditioning
