Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: ZG250
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd68000/unit-usd71000/unit
Packaging Details: 40FR
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 units per year
Operating Weight: |
25000kg |
Rated Bucket Capacity: |
1.2 M³ |
Overall Dimension: |
9840X3180X3180MM |
Standard Track Shoe Width: |
600MM |
Travelling Speed (H/L): |
5.8/3.2Km/hr |
Swing Speed: |
10.5RPM |
Gradeability: |
35（70%） |
Maximum Digging Radius: |
10258MM |
Maximum Digging Depth: |
6995MM |
Maximum Digging Height: |
9612MM |
Bucket Digging Force: |
162KN |
Stick Digging Force: |
123KN |
Engine Model: |
Cummins 6BTAA5.9-C178 |
Rated Power: |
133KW |
Operating Weight: |
25000kg |
Rated Bucket Capacity: |
1.2 M³ |
Overall Dimension: |
9840X3180X3180MM |
Standard Track Shoe Width: |
600MM |
Travelling Speed (H/L): |
5.8/3.2Km/hr |
Swing Speed: |
10.5RPM |
Gradeability: |
35（70%） |
Maximum Digging Radius: |
10258MM |
Maximum Digging Depth: |
6995MM |
Maximum Digging Height: |
9612MM |
Bucket Digging Force: |
162KN |
Stick Digging Force: |
123KN |
Engine Model: |
Cummins 6BTAA5.9-C178 |
Rated Power: |
133KW |

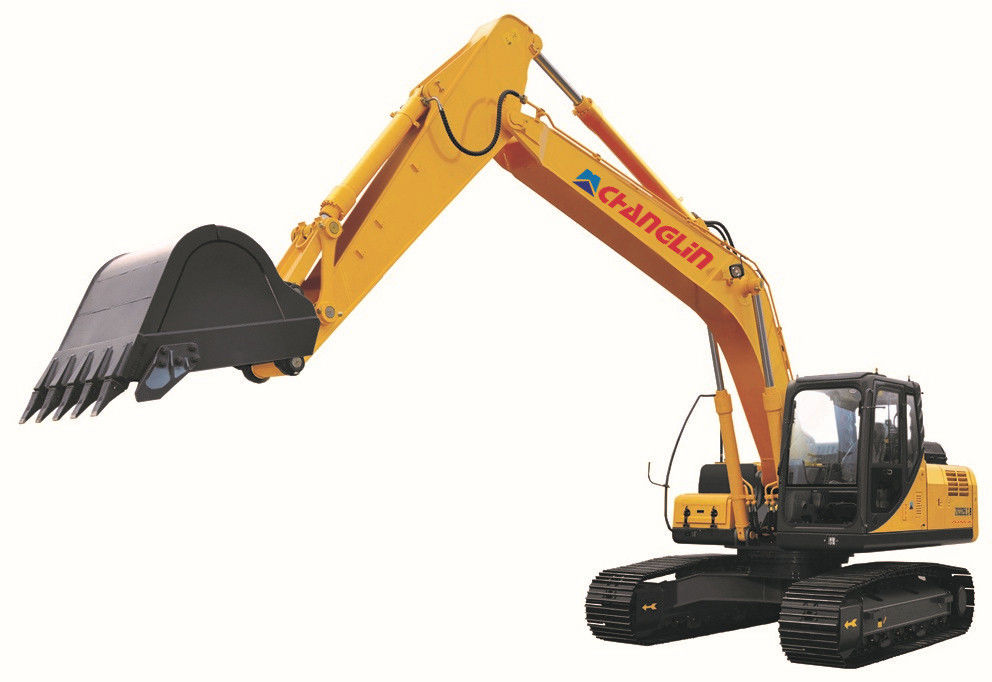

ZG250 HYDRAULIC EXCAVATOR SPECIFICATIONS
1. By FEA to boom and stick, the lifespan is extended.
2. The cylinder inside is applied roll finishing, and reaches excellent
roughness and hardness, which increases its resistance.
3. Sensitive joystick
4. Broad foot space
5. Strengthened chamber frame is totally welded by low stress and high
strength steel plate
6. Parker Valves - Closed center design for easy maintenance.
7. A first-stage oil-water separator is added, and the precision reaches 10 microns.
8. Install the battery protection plate to prevent rainwater and prolong the service life.
9. Anti-collision beams are added to make the fuselage stronger and safer.
10. Adopt plug-in world top brand air filter element, easy to replace and maintenance
up to 500 hours
11. Full-flow oil filter guarantees fuel injection, minimizes breakdowns and maintains up to
500 hours
