Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: ZG330
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd78000/unit-usd98000/unit
Packaging Details: 40FR or RO-RO ship
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 units per year
Operating Weight: |
31380kg |
Rated Bucket Capacity: |
1.6 M³ |
Overall Dimension: |
10686X3280X3546MM |
Standard Track Shoe Width: |
600MM |
Travelling Speed (H/L): |
4.8/3.0Km/hr |
Swing Speed: |
10RPM |
Gradeability: |
35（70%） |
Maximum Digging Radius: |
10233MM |
Maximum Digging Depth: |
6536MM |
Maximum Digging Height: |
9617MM |
Bucket Digging Force: |
225KN |
Stick Digging Force: |
182KN |
Engine Model: |
Cummins 6LTAA8.9-C325 |
Rated Power: |
241KW |
Operating Weight: |
31380kg |
Rated Bucket Capacity: |
1.6 M³ |
Overall Dimension: |
10686X3280X3546MM |
Standard Track Shoe Width: |
600MM |
Travelling Speed (H/L): |
4.8/3.0Km/hr |
Swing Speed: |
10RPM |
Gradeability: |
35（70%） |
Maximum Digging Radius: |
10233MM |
Maximum Digging Depth: |
6536MM |
Maximum Digging Height: |
9617MM |
Bucket Digging Force: |
225KN |
Stick Digging Force: |
182KN |
Engine Model: |
Cummins 6LTAA8.9-C325 |
Rated Power: |
241KW |

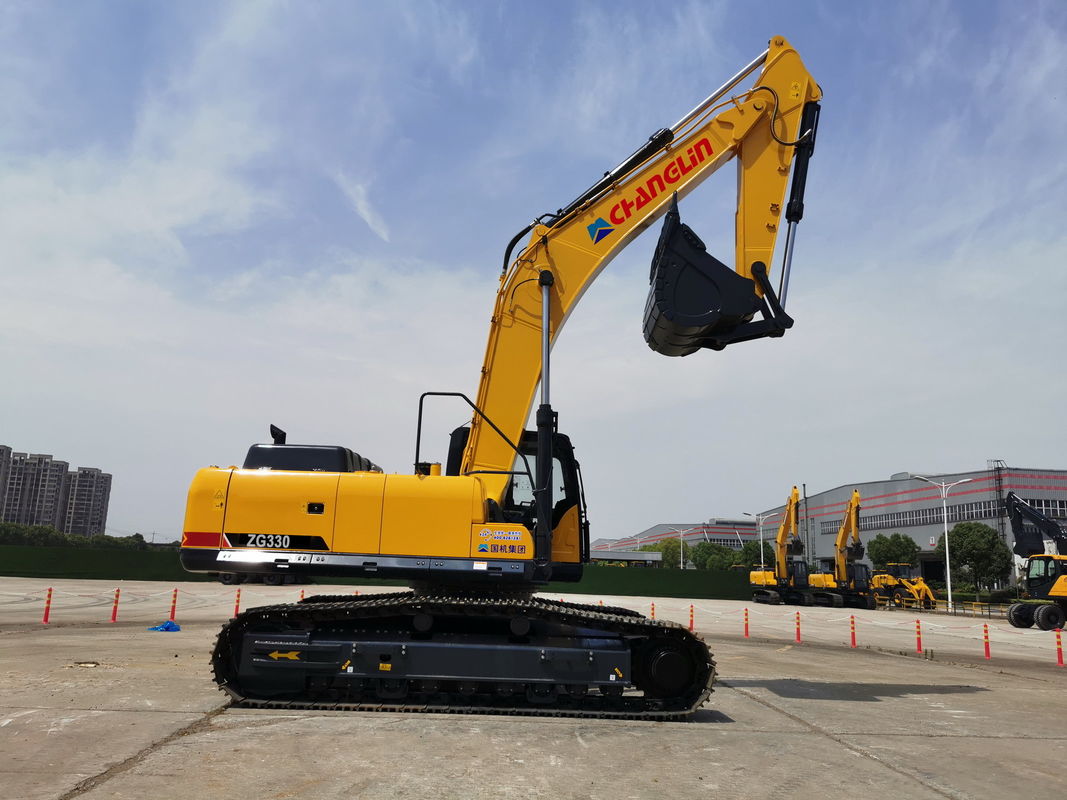

ZG330 HYDRAULIC EXCAVATOR SPECIFICATIONS
1,Introduction:
Cummins EFI engine (conforming to Ⅲ-stage emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.
2.(1)Cummins new generation high-power EFI engine with strong power, low fuel consumption and high reliability
(2) New hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and easier operation
(3) Equipped with a large-bore oil cylinder, optimizing the arrangement of key hinge points, improving the digging force of the whole machine, setting an automatic supercharging function, and automatically increasing the digging force as the load increases; large displacement slewing motor and slewing gear design with large speed ratio Higher starting torque, better slewing braking effect
(4) Aiming at the extremely harsh mining operation conditions, the heavy-duty reinforced boom, the mine-specific short stick and the large-capacity rock bucket are standard, and the extended and widened heavy-duty chassis is standard.
(5) Equipped with high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions;
