Product Details
Place of Origin: CHINA
Brand Name: CHANGLIN
Model Number: ZG210
Payment & Shipping Terms
Minimum Order Quantity: one unit
Price: usd58000/unit-usd61000/unit
Packaging Details: 40FR
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 units per year
Operating Weight: |
21000kg |
Rated Bucket Capacity: |
1.0 M³ |
Overall Dimension: |
9520X2800X3030MM |
Standard Track Shoe Width: |
600MM |
Travelling Speed (H/L): |
5.8/3.3Km/hr |
Swing Speed: |
13.9RPM |
Gradeability: |
35（70%） |
Maximum Digging Radius: |
9953MM |
Maximum Digging Depth: |
6690MM |
Maximum Digging Height: |
9642MM |
Bucket Digging Force: |
137KN |
Stick Digging Force: |
102KN |
Engine Model: |
Cummins 6B5.9-C150 |
Rated Power: |
112KW |
Operating Weight: |
21000kg |
Rated Bucket Capacity: |
1.0 M³ |
Overall Dimension: |
9520X2800X3030MM |
Standard Track Shoe Width: |
600MM |
Travelling Speed (H/L): |
5.8/3.3Km/hr |
Swing Speed: |
13.9RPM |
Gradeability: |
35（70%） |
Maximum Digging Radius: |
9953MM |
Maximum Digging Depth: |
6690MM |
Maximum Digging Height: |
9642MM |
Bucket Digging Force: |
137KN |
Stick Digging Force: |
102KN |
Engine Model: |
Cummins 6B5.9-C150 |
Rated Power: |
112KW |

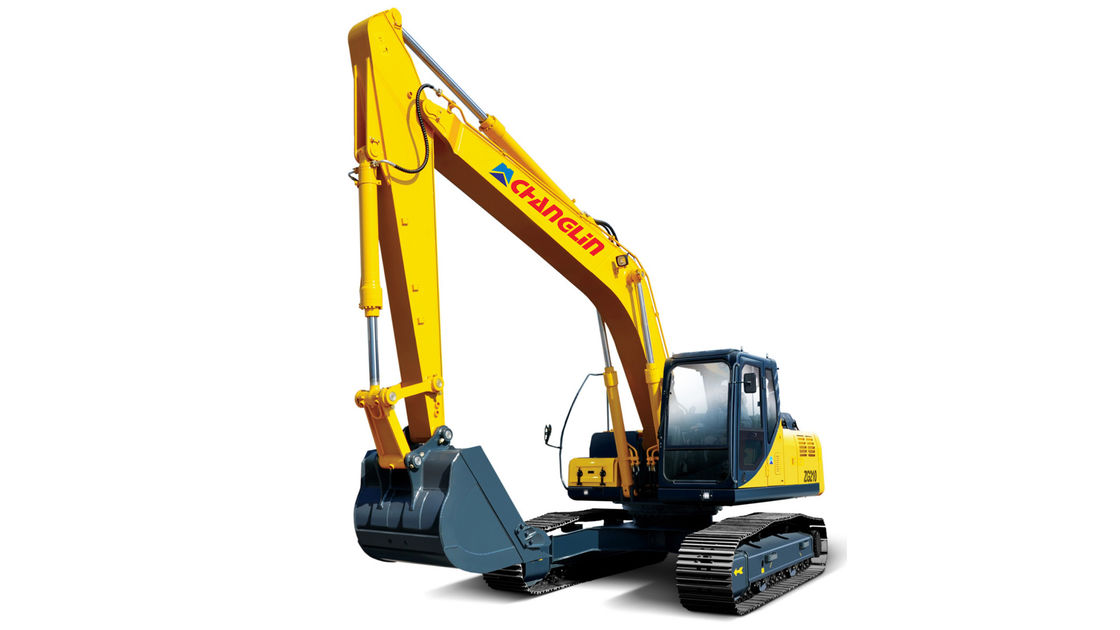

ZG210 HYDRAULIC EXCAVATOR SPECIFICATIONS
1.Introduction:
Equipped with Cummins engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.
2.Characteristics:
Equipped with Cummins engine, high load resistance, high horsepower output, high reliability, low fuel consumption, significantly reduce the use and maintenance costs
(2)Advanced negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency.
(3) High-strength reinforced box-type side beams and X-shaped middle frames, high-reliability towline wheels and track rollers, can withstand the impact caused by excessive loads.
(4) Intelligent electronic monitoring system, real-time monitoring, self-diagnosing fault alarm, maintenance information prompt.
