ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder

Name: ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder
Brand: CHANGLIN WEA CO., LTD
SKU: ZG480
Price: 52,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: changlin

Model Number: ZG480

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5000-USD100000

Delivery Time: 5-8work days

Payment Terms: L/C, T/T

Supply Ability: 30units/per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            ZG480 Compact Crawler Excavator, Compact Crawler Excavator 280KW, ZG480 Hydraulic Compact Excavator


Model:	ZG480	Length×Width×Height(mm):	12040×3340×3660
Operating Weight (Kg):	48000	Rated Bucket Capacity(m³):	2.2
Max.digging Depth(mm):	7862	Max.digging Radius(mm):	12027
Max.digging Height(mm):	10897	Max.dumping Height(mm):	7897
Bucket Digging Force(KN):	290	Stick Digging Force(KN):	255
Gradient Capacity(%):	70	Diesel Engine:	Cummins QSM11-C375
Rated Output(KW):	280KW

Model:	ZG480
Length×Width×Height(mm):	12040×3340×3660
Operating Weight (Kg):	48000
Rated Bucket Capacity(m³):	2.2
Max.digging Depth(mm):	7862
Max.digging Radius(mm):	12027
Max.digging Height(mm):	10897
Max.dumping Height(mm):	7897
Bucket Digging Force(KN):	290
Stick Digging Force(KN):	255
Gradient Capacity(%):	70
Diesel Engine:	Cummins QSM11-C375
Rated Output(KW):	280KW

Description

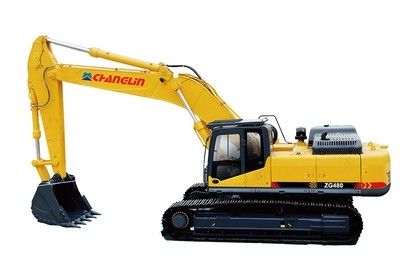

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder

CRAWLER EXCAVATORZG480

The ZG480 crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to accommodate various working environments, even in extremely harsh working conditionsf

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 0

The exclusive cab structure provides more foot space.

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 1

GRAMMER adjustable suspension seat is used in the excavator to adapt to uneven terrains.

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 2

The excavator cab is equipped with an openable roof hatch.

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 3

THE INNER SURFACE OF THE HYDRAULIC CYLINDER IS TREATED THROUGH TUMBLE FINISHING PROCESS TO IMPROVE THE SURFACE ROUGHNESS AND HARDNESS, THEREFORE RESULTING IN A GREATER WEAR RESISTANCE.

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 4

The piston rod is chrome and nickel-plated to prevent it get rusted while improving the abrasion resistance.

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 5

The excavator bucket adopts thickened steel plate, and the bucket teeth are strengthened and lengthened for greater wear resistance.

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 6

The strengthened box type structure is fully welded using low stress high tensile steel plate.

ZG480 Hydraulic Compact Crawler Excavator 280KW With Tumble Finished Hydraulic Cylinder 7

The high strength guard boards are installed as standard to protect the excavator components.
