Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment

Name: Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment
Brand: CHANGLIN WEA CO., LTD
SKU: ZG520
Price: 52,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: changlin

Model Number: ZG520

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5000-USD100000

Delivery Time: 5-8work days

Payment Terms: L/C, T/T

Supply Ability: 30units/per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Changlin Crawler Hydraulic Excavator, Crawler Hydraulic Excavator ZG520, Compact Mini Excavator Equipment


Operating Weight (Kg):	50500	Rated Bucket Capacity (m³):	3.2
Overall Length (mm):	11657	Overall Width (Standard Track Shoe) (mm):	3340/3562 (over Steps)
Overall Height (mm):	3998	Standard Track Shoe Width (mm):	600
Travelling Speed (H/L) (Km/hr):	5.5/3.1	Swing Speed (rpm):	9.4
Gradeability (Degree (%)):	35 (70%)	Ground Pressure (Kgf/cm²):	0.85
Maximum Digging Radius (mm):	10922	Maximum Digging Depth (mm):	6453
Maximum Digging Height (mm):	11020	Bucket Digging Force (kN):	290
Stick Digging Force (kN):	270	Diesel Engine:	Cummins QSM11
Type:	6-cylinder In-line, Four-stroke Turbocharger	Rated Power:	280kW@2000rpm

Operating Weight (Kg):	50500
Rated Bucket Capacity (m³):	3.2
Overall Length (mm):	11657
Overall Width (Standard Track Shoe) (mm):	3340/3562 (over Steps)
Overall Height (mm):	3998
Standard Track Shoe Width (mm):	600
Travelling Speed (H/L) (Km/hr):	5.5/3.1
Swing Speed (rpm):	9.4
Gradeability (Degree (%)):	35 (70%)
Ground Pressure (Kgf/cm²):	0.85
Maximum Digging Radius (mm):	10922
Maximum Digging Depth (mm):	6453
Maximum Digging Height (mm):	11020
Bucket Digging Force (kN):	290
Stick Digging Force (kN):	270
Diesel Engine:	Cummins QSM11
Type:	6-cylinder In-line, Four-stroke Turbocharger
Rated Power:	280kW@2000rpm

Description

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment

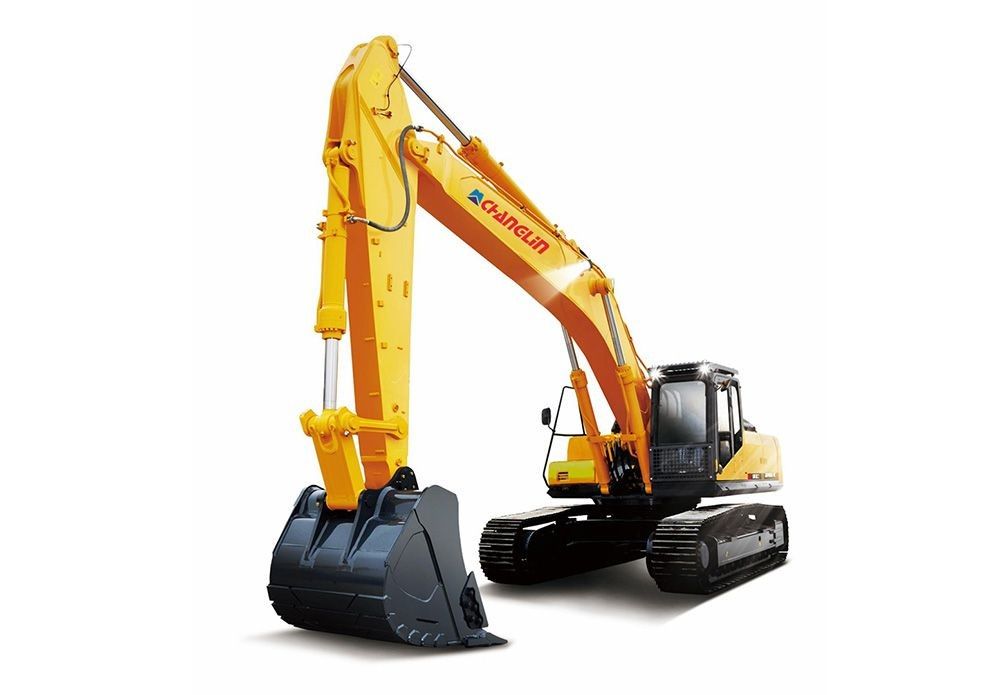

CRAWLER EXCAVATORZG520

The ZG520 crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to accommodate various working environments, even in extremely harsh working conditions.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment 0

The exclusive cab structure provides more foot space.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment 1

GRAMMER adjustable suspension seat is used in the excavator to adapt to uneven terrains.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment 2

The excavator bucket adopts thickened steel plate, and the bucket teeth are strengthened and lengthened for greater wear resistance.

Changlin Crawler Hydraulic Excavator ZG520 Compact Mini Excavator Equipment 3

The strengthened box type structure is fully welded using low stress high tensile steel plate.
