Product Details
Place of Origin: China
Brand Name: CHANGLIN
Certification: Provided
Model Number: ZG210
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 80000-90000USD
Packaging Details: Nude
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, L/C, D/A
Supply Ability: 30set/momth
Operation Weight: |
21000kg |
Bucket Capacity: |
1.0m³ |
Rated Power: |
112KW |
Lenght*Width*Height(mm): |
9520*2800*3030mm |
Maximum Digging Depth: |
6690mm |
Max Digging Radius: |
9953mm |
Max.dumping Height: |
6810 |
Bucket Digging Height: |
137KN |
Stick Digging Force: |
102KN |
Gradient Capacity: |
70% |
Diesel Engine: |
Cummins 6BTAA5.9-C150 |
Rated Output(KW): |
120KW |
Name: |
Professional Excavator |
Operation Weight: |
21000kg |
Bucket Capacity: |
1.0m³ |
Rated Power: |
112KW |
Lenght*Width*Height(mm): |
9520*2800*3030mm |
Maximum Digging Depth: |
6690mm |
Max Digging Radius: |
9953mm |
Max.dumping Height: |
6810 |
Bucket Digging Height: |
137KN |
Stick Digging Force: |
102KN |
Gradient Capacity: |
70% |
Diesel Engine: |
Cummins 6BTAA5.9-C150 |
Rated Output(KW): |
120KW |
Name: |
Professional Excavator |

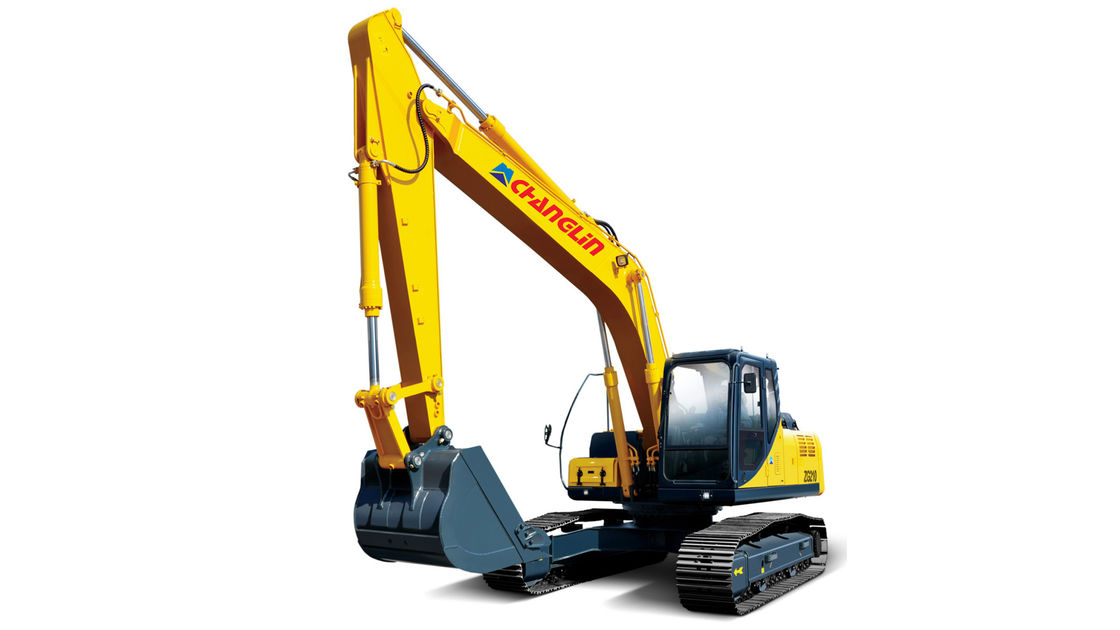

Changlin Crawler Excavator ZG210
CHANGLIN ZG210 crawler excavator is equipped with Cummins engine which delivers strong power, high work efficiency, energy saving and high reliability. The advanced negative flow control hydraulic system enables comfortable operation, high work efficiency and outstanding cost effectiveness. There are four power modes to adapt to different jobsite conditions. The stepper motor ensures precise control of the throttle, thus significantly reducing fuel consumption. The reliability and stability of the crawler excavators are guaranteed thanks to the use of full three-dimensional modeling and finite element analysis technology.
FEATURES
1. Cummins engine is able to withstand high loads and has high horsepower output, providing exceptional reliability and low fuel consumption while reducing the operation and maintenance costs.
2. The advanced negative flow control hydraulic system is used for better system stability and reliability, faster response of compound control action and higher work efficiency.
3. The undercarriage features high-strength reinforced box-type side beams, X-chassis frame and track rollers, allowing the crawler excavator to withstand high impact loads.
