Product Details
Place of Origin: China
Brand Name: CHANGLIN
Certification: Provided
Model Number: ZG380
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 80000-90000USD
Packaging Details: Nude
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, L/C, D/A
Supply Ability: 30set/momth
Name: |
Hydraulic Crawler Excavator |
Operation Weight: |
37300kg |
Bucket Capacity: |
1.8m3 |
Rated Power: |
214kW@2100RPM |
Length*Width*Height(mm): |
11280*3280*3560mm |
Max.digging Depth(mm): |
5884 |
Max.digging Radius(mm): |
10546 |
Max.dumping Height(mm): |
11110 |
Bucket Digging Force(kN): |
240 |
Stick Digging Force(KN): |
214 |
Travelling Speed(H/L)(Km/hr): |
5.5/3.3 |
Swing Speed (rpm): |
8.8 |
Gradeability (Degree(%)): |
35 (70%) |
Ground Pressure (Kgf/cm²): |
0.7 |
Name: |
Hydraulic Crawler Excavator |
Operation Weight: |
37300kg |
Bucket Capacity: |
1.8m3 |
Rated Power: |
214kW@2100RPM |
Length*Width*Height(mm): |
11280*3280*3560mm |
Max.digging Depth(mm): |
5884 |
Max.digging Radius(mm): |
10546 |
Max.dumping Height(mm): |
11110 |
Bucket Digging Force(kN): |
240 |
Stick Digging Force(KN): |
214 |
Travelling Speed(H/L)(Km/hr): |
5.5/3.3 |
Swing Speed (rpm): |
8.8 |
Gradeability (Degree(%)): |
35 (70%) |
Ground Pressure (Kgf/cm²): |
0.7 |

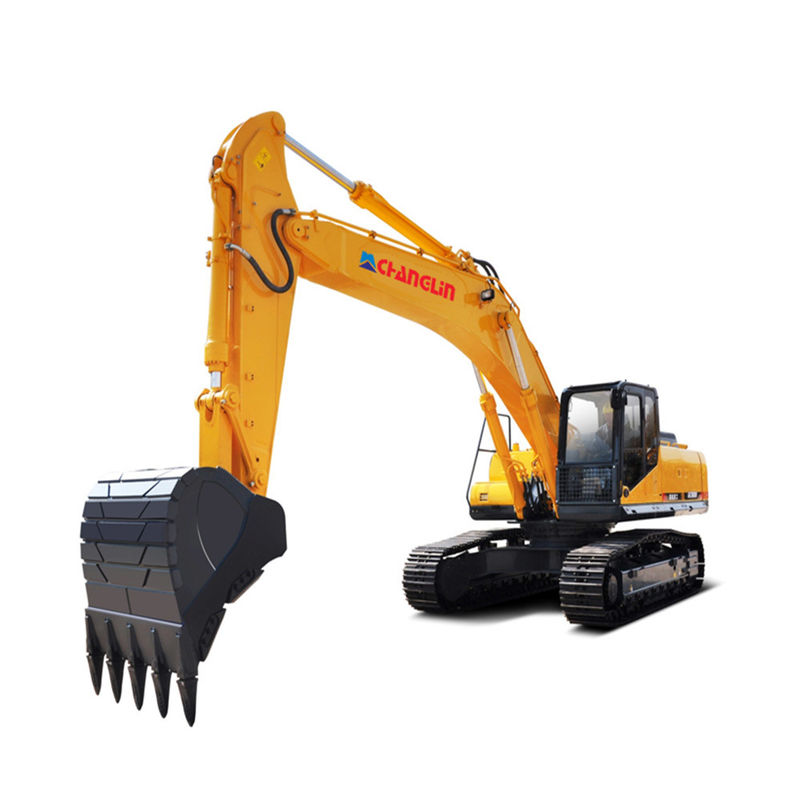

Changlin Crawler Excavator ZG380
The strengthened box type structure is fully welded using low stress high tensile steel plate.
FEATURES
1. The crawler excavator is equipped with original Cummins engine, featuring high power, low fuel consumption and better reliability.
2. The newly developed hydraulic system coupled with large displacement pump and high flow valve ensures large flow area, minimized pressure loss, reasonable flow distribution, better movement coordination and easy operation.
3. The control system is newly developed to assure the full functionality of the entire excavator. It can intelligently adjust the hydraulic absorption power to accommodate the working conditions, and enable an optimized system matching.
4. The crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to adapt to various working environments even in extremely harsh working conditions.
5. The excavation operations will be accurately assessed and the hydraulic pressures associated with the boom and stick will be automatically reached, thereby providing the adequate digging force to deal with heavy loads while improving the work efficiency and ensuring the high reliability of the hydraulic system.
6.The crawler excavator is equipped with a high-resolution glare-free color monitor, and an intelligent electronic monitoring system with functions of maintenance reminding, automatic fault diagnosis and alerting.
