Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom

Name: Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom
Brand: CHANGLIN WEA CO., LTD
SKU: ZG480
Price: 85,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CHANGLIN

Certification: Provided

Model Number: ZG480

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 80000-90000USD

Packaging Details: Nude

Delivery Time: 30 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, L/C, D/A

Supply Ability: 30set/momth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            ZG480 Hydraulic Excavator, Hydraulic Excavator Heavy Duty, ZG480 Heavy Duty Excavator


Operation Weight:	47300kg	Bucket Capacity:	2.2m³
Rated Power:	280kW@2100RPM	LengthWidthHeight(mm):	1204033403660mm
Max.digging Depth(mm):	7862	Max.digging Radius(mm):	12027
Max.dumping Height(mm):	10897	Bucket Digging Force(kN):	290
Stick Digging Force(KN):	255	Travelling Speed(H/L)(Km/hr):	5.5/3.3
Swing Speed (rpm):	8.8	Gradeability (Degree(%)):	70
Max. Dumping Height(mm):	7897mm

Operation Weight:	47300kg
Bucket Capacity:	2.2m³
Rated Power:	280kW@2100RPM
LengthWidthHeight(mm):	1204033403660mm
Max.digging Depth(mm):	7862
Max.digging Radius(mm):	12027
Max.dumping Height(mm):	10897
Bucket Digging Force(kN):	290
Stick Digging Force(KN):	255
Travelling Speed(H/L)(Km/hr):	5.5/3.3
Swing Speed (rpm):	8.8
Gradeability (Degree(%)):	70
Max. Dumping Height(mm):	7897mm

Description

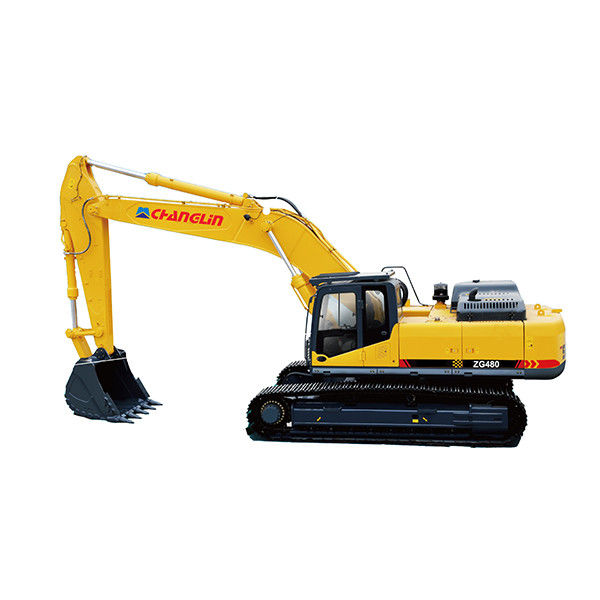

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom

Changlin Crawler Excavator ZG480

The ZG480 crawler excavator is configured with heavy-duty reinforced boom, short stick, bucket, widened heavy-duty chassis and optimized box-shaped structure, to accommodate various working environments, even in extremely harsh working conditions.

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 0

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 1

FEATURES

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 2

1. The exclusive cab structure provides more foot space.

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 3

2. GRAMMER adjustable suspension seat is used in the excavator to adapt to uneven terrains.

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 4

3. The excavator cab is equipped with an openable roof hatch.

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 5

4. The inner surface of the hydraulic cylinder is treated through tumble finishing process to improve the surface roughness and hardness, therefore resulting in a greater wear resistance.

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 6

5. The piston rod is chrome and nickel-plated to prevent it get rusted while improving the abrasion resistance.

Changlin ZG480 Hydraulic Excavator With Heavy Duty Reinforced Boom 7

6. The excavator bucket adopts thickened steel plate, and the bucket teeth are strengthened and lengthened for greater wear resistance.
