Product Details
Place of Origin: CHINA
Brand Name: changlin
Model Number: ZG150
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD5000-USD10000
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 30units/per month
Model: |
ZG150 |
Operation Weight: |
13890kg |
Rated Bucket Capacity: |
0.6m3 |
Turntable Width: |
2510 Mm |
Ground Clearance Of Counterweight: |
915 Mm |
Max. Traction: |
122 KN |
Traveling Speed （H/L）: |
5.9/3.4 Km/hr |
Swing Speed: |
13 Rpm |
Gradeability: |
35（70%）Degree(%) |
Ground Pressure: |
0.423 Kgf/cm2 |
Maximum Digging Radius: |
8335 Mm |
Ground Maximum Digging Radius: |
8203 Mm |
Maximum Digging Depth: |
5491 Mm |
Model: |
ZG150 |
Operation Weight: |
13890kg |
Rated Bucket Capacity: |
0.6m3 |
Turntable Width: |
2510 Mm |
Ground Clearance Of Counterweight: |
915 Mm |
Max. Traction: |
122 KN |
Traveling Speed （H/L）: |
5.9/3.4 Km/hr |
Swing Speed: |
13 Rpm |
Gradeability: |
35（70%）Degree(%) |
Ground Pressure: |
0.423 Kgf/cm2 |
Maximum Digging Radius: |
8335 Mm |
Ground Maximum Digging Radius: |
8203 Mm |
Maximum Digging Depth: |
5491 Mm |

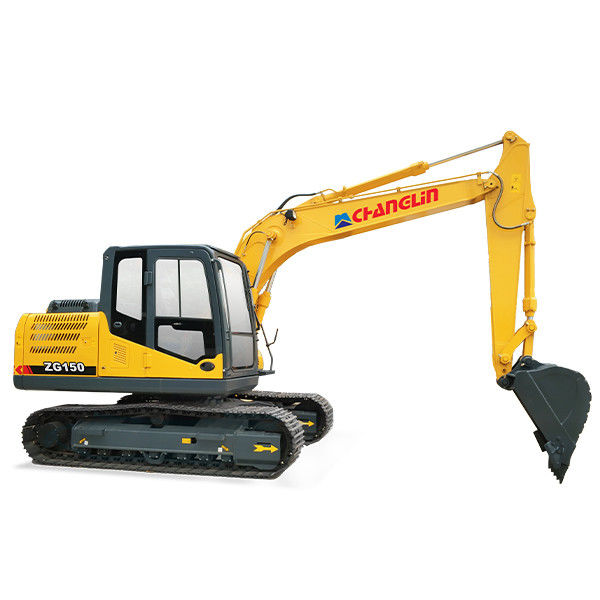

Introducing the ZG150 Crawler Hydraulic Excavator: A Powerhouse for Excavation Tasks
The ZG150 Crawler Hydraulic Excavator is a robust and efficient machine, designed to handle a wide range of excavation tasks with ease. With an operating weight of 13,890 kg and a powerful 86 kW/2200 rpm engine, this excavator is a force to be reckoned with on any construction site.
At the heart of the ZG150 is the Cummins QSF3.8-C115 engine, a new generation high-power EFI engine that delivers impressive performance. As a four-cylinder in-line, four-stroke turbocharged engine, it meets the National III emission standards and boasts a water-cooled cooling method. With a bore diameter of 102 mm and a stroke of 115 mm, the engine has a displacement of 3.76 liters and a rated power of 86 kW at 2220 RPM.
The ZG150's new generation control system is designed to optimize hydraulic absorption power, ensuring comprehensive performance in all excavation tasks. This system works in tandem with the excavator's impressive specifications, including a maximum traction of 122 KN, traveling speeds of 5.9 km/hr in high gear and 3.4 km/hr in low gear, and a swing speed of 13 rpm.
When it comes to tackling challenging terrain, the ZG150 doesn't disappoint. With a gradeability of 35 degrees (70%), this excavator can easily navigate slopes and uneven ground, ensuring that your excavation tasks are completed efficiently and effectively.
The ZG150 Crawler Hydraulic Excavator is equipped with a rated bucket capacity of 0.6 m³, allowing you to move large amounts of material quickly and efficiently. Whether you're working on a large-scale construction project or a smaller excavation task, this excavator has the power and versatility to get the job done.
In addition to its impressive power and performance, the ZG150 is built to last. With a robust design and high-quality components, this excavator can withstand the rigors of daily use on construction sites, ensuring that you can rely on it for all your excavation needs.
In conclusion, the ZG150 Crawler Hydraulic Excavator is a powerful and efficient machine that is perfectly suited for a wide range of excavation tasks. With its high-powered Cummins engine, advanced control system, and impressive specifications, this excavator is a valuable asset for any construction project. So why wait? Invest in the ZG150 today and experience the power and performance that this excavator has to offer.
Key Features of the ZG150 Crawler Hydraulic Excavator:
- Operating Weight: 13,890 kg
- Power: 86 kW/2200 rpm
- Rated Bucket Capacity: 0.6 m³
- Engine Model: Cummins QSF3.8-C115
- Engine Type: Four-cylinder in-line, four-stroke turbocharger
- Emission: National III
- Cooling Method: Water cooled
- Bore Diameter × Stroke: 102×115 mm
- Displacement: 3.76 L
- Rated Power: 86KW/2220RPM
- Max. Traction: 122 KN
- Traveling Speed (H/L): 5.9/3.4 Km/hr
- Swing Speed: 13 rpm
- Gradeability: 35(70%)Degree(%)
